XML Schema Documentation

Name	BasketIdentifier.model
Used by (from the same schema document)	Complex Type Basket
Documentation	A group that specifies a name and an identifier for a given basket.

XML Instance Representation

Start Choice [1]

<basketName> BasketName </basketName> [1]

'The name of the basket expressed as a free format string. FpML does not define usage rules for this element.'

<basketId> BasketId </basketId> [0..*]

'A CDS basket identifier'

<basketId> BasketId </basketId> [1..*]

'A CDS basket identifier'

End Choice

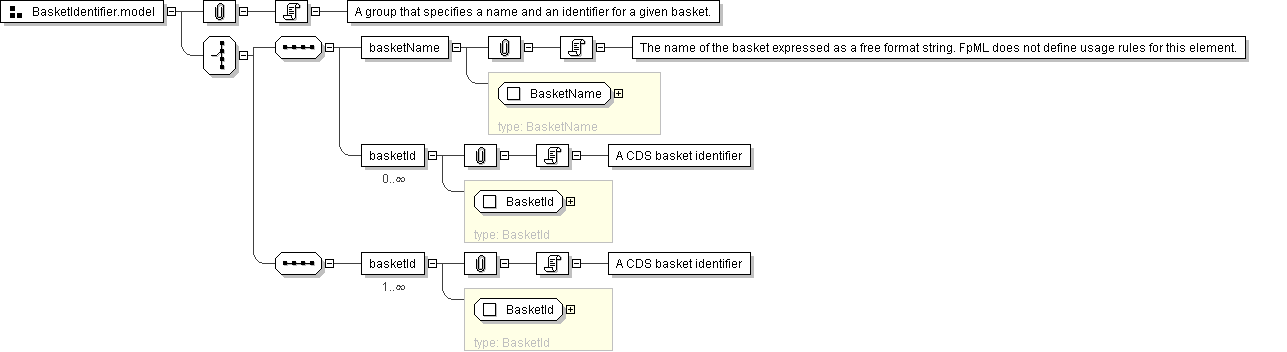

Diagram

Schema Component Representation

<xsd:group name="BasketIdentifier.model">

<xsd:choice>

<xsd:sequence>

<xsd:element name="basketName" type=" BasketName "/>

<xsd:element name="basketId" type=" BasketId " minOccurs="0" maxOccurs="unbounded"/>

</xsd:sequence>

<xsd:sequence>

<xsd:element name="basketId" type=" BasketId " maxOccurs="unbounded"/>

</xsd:sequence>

</xsd:choice>

</xsd:group>
