XML Schema Documentation

Super-types:	None
Sub-types:	None

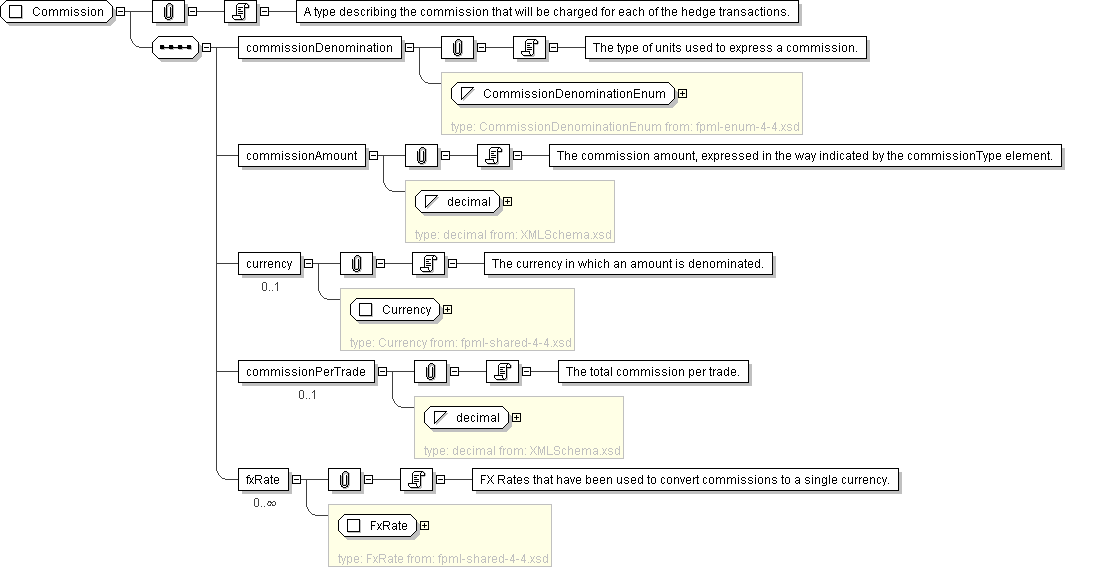

Name	Commission
Used by (from the same schema document)	Complex Type Price
Abstract	no
Documentation	A type describing the commission that will be charged for each of the hedge transactions.

XML Instance Representation

<...>

<commissionDenomination> CommissionDenominationEnum </commissionDenomination> [1]

'The type of units used to express a commission.'

<commissionAmount> xsd:decimal </commissionAmount> [1]

'The commission amount, expressed in the way indicated by the commissionType element.'

<currency> Currency </currency> [0..1]

'The currency in which an amount is denominated.'

<commissionPerTrade> xsd:decimal </commissionPerTrade> [0..1]

'The total commission per trade.'

<fxRate> FxRate </fxRate> [0..*]

'FX Rates that have been used to convert commissions to a single currency.'

</...>

Schema Component Representation

<xsd:complexType name="Commission">

<xsd:sequence>

<xsd:element name="commissionDenomination" type=" CommissionDenominationEnum "/>

<xsd:element name="commissionAmount" type=" xsd:decimal "/>

<xsd:element name="currency" type=" Currency " minOccurs="0"/>

<xsd:element name="commissionPerTrade" type=" xsd:decimal " minOccurs="0"/>

<xsd:element name="fxRate" type=" FxRate " minOccurs="0" maxOccurs="unbounded"/>

</xsd:sequence>

</xsd:complexType>
