XML Schema Documentation

Complex Type: RequestTradeConfirmation

[Table of contents]

Super-types: RequestMessage < RequestTradeConfirmation (by extension)
Sub-types: None
Name RequestTradeConfirmation
Abstract no
Documentation A type defining the content model for a message requesting that the contained trade be put forward for matching and confirmation.
XML Instance Representation
<...
version=" xsd:token (value comes from list: {'4-0'|'4-1'|'4-2'|'4-3'|'4-4'}) [1]

'Indicate which version of the FpML Schema an FpML message adheres to.'

"

expectedBuild=" xsd:positiveInteger [0..1]

'This optional attribute can be supplied by a message creator in an FpML instance to specify which build number of the schema was used to define the message when it was generated.'

"

actualBuild="12 [0..1]

'The specific build number of this schema version. This attribute is not included in an instance document. Instead, it is supplied by the XML parser when the document is validated against the FpML schema and indicates the build number of the schema file. Every time FpML publishes a change to the schema, validation rules, or examples within a version (e.g., version 4.2) the actual build number is incremented. If no changes have been made between releases within a version (i.e. from Trial Recommendation to Recommendation) the actual build number stays the same.'

"
>
<header> RequestMessageHeader </header> [1]
<validation> Validation </validation> [0..*]
<trade> Trade </trade> [1]

'The root element in an FpML trade document.'

<party> Party </party> [2..*]

'A legal entity or a subdivision of a legal entity.','Parties can perform multiple roles in a trade lifecycle. For example, the principal parties obligated to make payments from time to time during the term of the trade, but may include other parties involved in, or incidental to, the trade, such as parties acting in the role of novation transferor/transferee, broker, calculation agent, etc. In FpML roles are defined in multiple places within a document.'

</...>

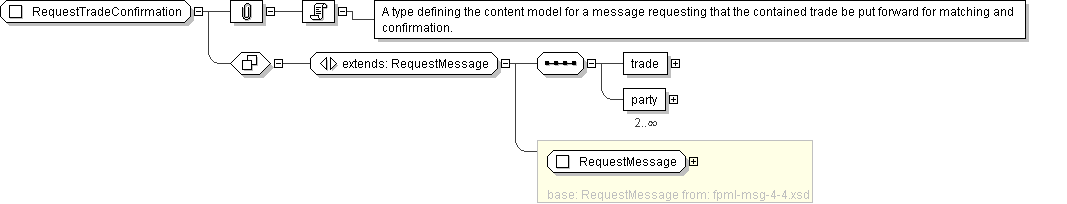

Diagram
Schema Component Representation
<xsd:complexType name="RequestTradeConfirmation">
<xsd:complexContent>
<xsd:extension base=" RequestMessage ">
<xsd:sequence>
<xsd:element name="trade" type=" Trade "/>
<xsd:element name="party" type=" Party " minOccurs="2" maxOccurs="unbounded"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
