XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	ResourceLength
Used by (from the same schema document)	Complex Type Resource
Abstract	no
Documentation	The type that indicates the length of the resource.

XML Instance Representation

<...>

<lengthUnit> LengthUnitEnum </lengthUnit> [1]

'The length unit of the resource. For example, pages (pdf, text documents) or time (audio, video files).'

<lengthValue> xsd:decimal </lengthValue> [1]

'The length value of the resource.'

</...>

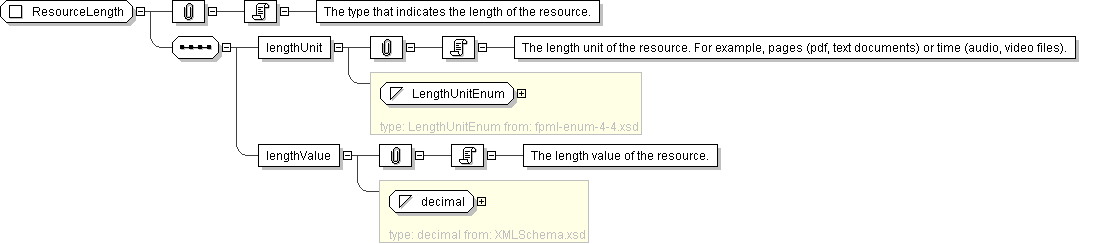

Diagram

Schema Component Representation

<xsd:complexType name="ResourceLength">

<xsd:sequence>

<xsd:element name="lengthUnit" type=" LengthUnitEnum "/>

<xsd:element name="lengthValue" type=" xsd:decimal "/>

</xsd:sequence>

</xsd:complexType>
