XML Schema Documentation

Super-types:	Event < Amendment (by extension)
Sub-types:	None

Name	Amendment
Abstract	no
Documentation	An event type that defines the content of an Amendment transaction.

XML Instance Representation

<...>

<eventId> EventId </eventId> [0..*]

<trade> Trade </trade> [1]

<amendmentTradeDate> xsd:date </amendmentTradeDate> [1]

'The date on which the the parties enter into the Amendment transaction'

<amendmentEffectiveDate> xsd:date </amendmentEffectiveDate> [1]

'The date on which the Amendment becomes effective'

<payment> Payment </payment> [0..1]

'A payment for the right to amend the trade.'

</...>

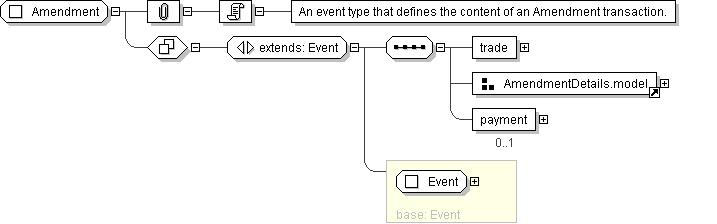

Diagram

Schema Component Representation

<xsd:complexType name="Amendment">

<xsd:complexContent>

<xsd:extension base=" Event ">

<xsd:sequence>

<xsd:element name="trade" type=" Trade "/>

<xsd:group ref=" AmendmentDetails.model "/>

<xsd:element name="payment" type=" Payment " minOccurs="0"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
