XML Schema Documentation

Super-types:	PaymentRule < PercentageRule (by extension)
Sub-types:	None

Name	PercentageRule
Abstract	no
Documentation	A type defining a content model for a calculation rule defined as percentage of the notional amount.

XML Instance Representation

<...>

<paymentPercent> xsd:decimal </paymentPercent> [1]

'A percentage of the notional amount.'

<notionalAmountReference> NotionalAmountReference </notionalAmountReference> [1]

'A reference to the notional amount.'

</...>

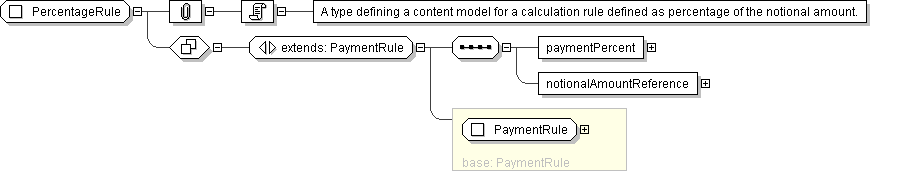

Diagram

Schema Component Representation

<xsd:complexType name="PercentageRule">

<xsd:complexContent>

<xsd:extension base=" PaymentRule ">

<xsd:sequence>

<xsd:element name="paymentPercent" type=" xsd:decimal "/>

<xsd:element name="notionalAmountReference" type=" NotionalAmountReference "/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
