XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	TradeHeader
Used by (from the same schema document)	Complex Type Trade
Abstract	no
Documentation	A type defining trade related information which is not product specific.

XML Instance Representation

<...>

<partyTradeIdentifier> PartyTradeIdentifier </partyTradeIdentifier> [1..*]

'The trade reference identifier(s) allocated to the trade by the parties involved.'

<partyTradeInformation> PartyTradeInformation </partyTradeInformation> [0..*]

'Additional trade information that may be provided by each involved party.'

<tradeDate> IdentifiedDate </tradeDate> [1]

'The trade date.'

</...>

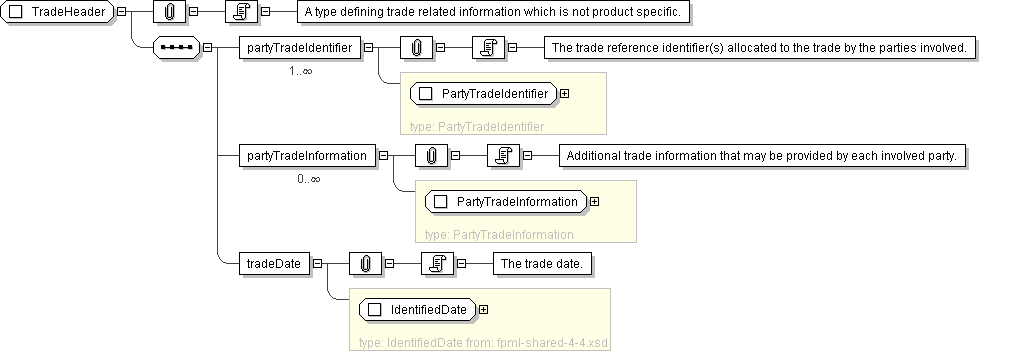

Diagram

Schema Component Representation

<xsd:complexType name="TradeHeader">

<xsd:sequence>

<xsd:element name="partyTradeIdentifier" type=" PartyTradeIdentifier " maxOccurs="unbounded"/>

<xsd:element name="partyTradeInformation" type=" PartyTradeInformation " minOccurs="0" maxOccurs="unbounded"/>

<xsd:element name="tradeDate" type=" IdentifiedDate "/>

</xsd:sequence>

</xsd:complexType>
