XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	FxEuropeanTrigger
Used by (from the same schema document)	Complex Type FxDigitalOption
Abstract	no
Documentation	A type that defines a particular type of payout in an FX OTC exotic option. A European trigger occurs if the trigger criteria are met, but these are valid (and an observation is made) only at the maturity of the option.

XML Instance Representation

<...>

<triggerCondition> TriggerConditionEnum </triggerCondition> [1]

'The condition that applies to a European-style trigger. It determines where the rate at expiry date and time at must be relative to the triggerRate for the option to be exercisable. The allowed values are \"Above\" and \"Below\".'

<quotedCurrencyPair> QuotedCurrencyPair </quotedCurrencyPair> [1]

'Defines the two currencies for an FX trade and the quotation relationship between the two currencies.'

<triggerRate> xsd:decimal </triggerRate> [1]

'The market rate is observed relative to the trigger rate, and if it is found to be on the predefined side of (above or below) the trigger rate, a trigger event is deemed to have occurred.'

<informationSource> InformationSource </informationSource> [1..*]

'The information source where a published or displayed market rate will be obtained, e.g. Telerate Page 3750.'

</...>

Schema Component Representation

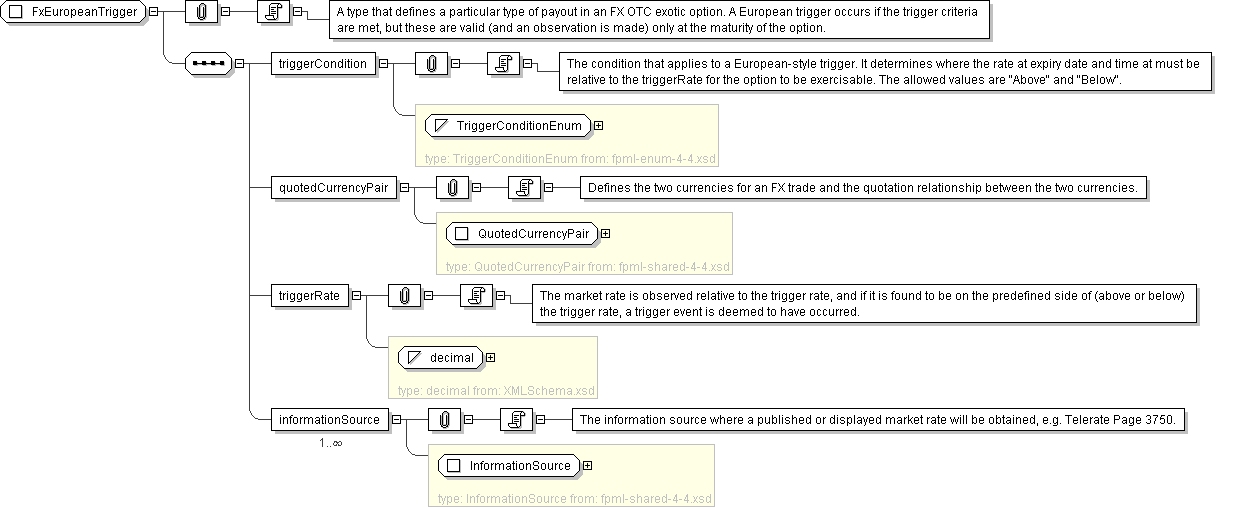

<xsd:complexType name="FxEuropeanTrigger">

<xsd:sequence>

<xsd:element name="triggerCondition" type=" TriggerConditionEnum "/>

<xsd:element name="quotedCurrencyPair" type=" QuotedCurrencyPair "/>

<xsd:element name="triggerRate" type=" xsd:decimal "/>

<xsd:element name="informationSource" type=" InformationSource " maxOccurs="unbounded"/>

</xsd:sequence>

</xsd:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support.
