XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	DrawdownPayment
Used by (from the same schema document)	Complex Type DrawdownNotice
Abstract	no
Documentation	A structure used to describe the payment to be processed as part of the drawdown notice.

XML Instance Representation

<...>

<paymentDate> xsd:date </paymentDate> [1]

'The date on which the principal payment is made by the lender to the agent bank. This is an actual (adjusted) date. Usually defaults to the effective date of the loan contract.'

<shareLoanContractAmount> Money </shareLoanContractAmount> [1]

'The amount of principal allocated to the lender for the given drawdown request. This is the same as the payment that must be made by the lender to satisfy the drawdown request.'

</...>

Schema Component Representation

<xsd:complexType name="DrawdownPayment">

<xsd:sequence>

<xsd:element name="paymentDate" type=" xsd:date "/>

<xsd:element name="shareLoanContractAmount" type=" Money "/>

</xsd:sequence>

</xsd:complexType>

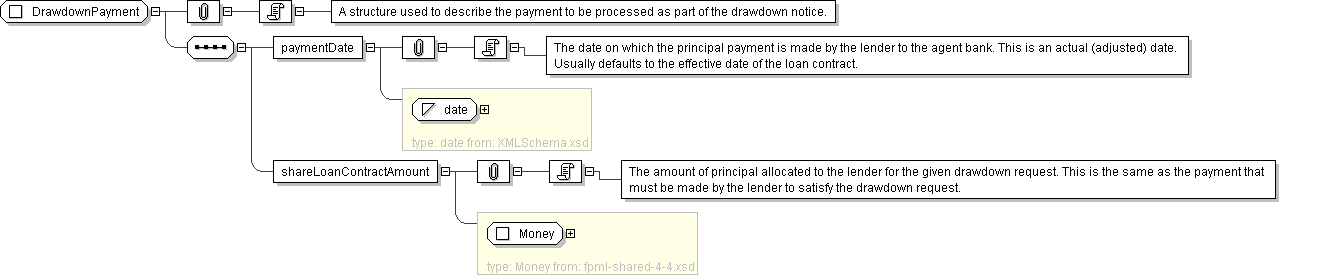

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support.
