XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	FacilityCommitmentPosition
Used by (from the same schema document)	Model Group FacilityNoticeDetails.model
Abstract	no
Documentation	This represents current and prior facility commitment amounts on both the global and lender postion levels.

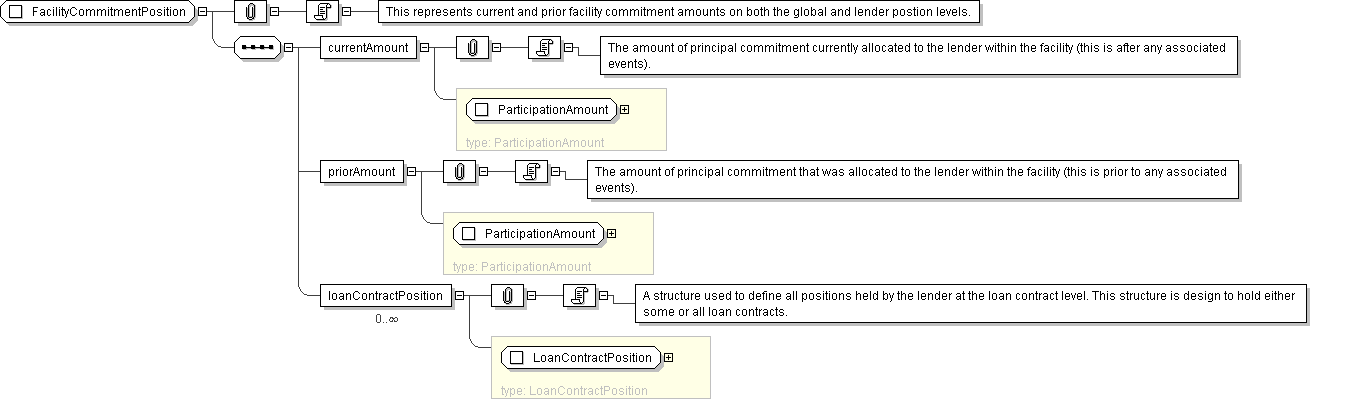

XML Instance Representation

<...>

<currentAmount> ParticipationAmount </currentAmount> [1]

'The amount of principal commitment currently allocated to the lender within the facility (this is after any associated events).'

<priorAmount> ParticipationAmount </priorAmount> [1]

'The amount of principal commitment that was allocated to the lender within the facility (this is prior to any associated events).'

<loanContractPosition> LoanContractPosition </loanContractPosition> [0..*]

'A structure used to define all positions held by the lender at the loan contract level. This structure is design to hold either some or all loan contracts.'

</...>

Schema Component Representation

<xsd:complexType name="FacilityCommitmentPosition">

<xsd:sequence>

<xsd:element name="currentAmount" type=" ParticipationAmount "/>

<xsd:element name="priorAmount" type=" ParticipationAmount "/>

<xsd:element name="loanContractPosition" type=" LoanContractPosition " minOccurs="0" maxOccurs="unbounded"/>

</xsd:sequence>

</xsd:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support.

Complex Type: FacilityCommitmentPosition
