XML Schema Documentation

Complex Type: RatePeriod

[Table of contents]

Super-types:	None
Sub-types:	None

Name	RatePeriod
Used by (from the same schema document)	Complex Type FeeAccrualSchedule
Abstract	no
Documentation	Defines a generic 'rate' for a defined period.

XML Instance Representation

<...>

<startDate> xsd:date </startDate> [1]

'Date on which this period begins.'

<endDate> xsd:date </endDate> [1]

'Date on which this period ends.'

<rate> xsd:decimal </rate> [1]

'The rate applied to this period.'

</...>

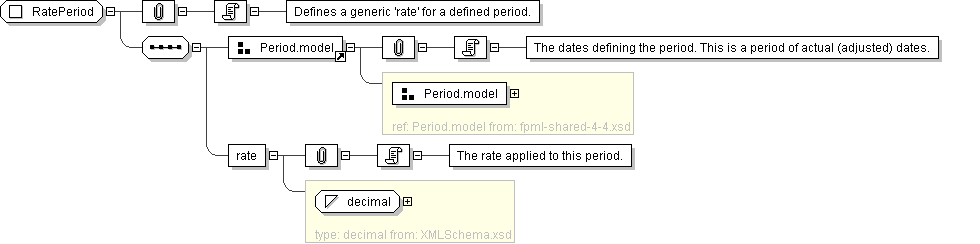

Diagram

Schema Component Representation

<xsd:complexType name="RatePeriod">

<xsd:sequence>

<xsd:group ref=" Period.model "/>

<xsd:element name="rate" type=" xsd:decimal "/>

</xsd:sequence>

</xsd:complexType>
