XML Schema Documentation

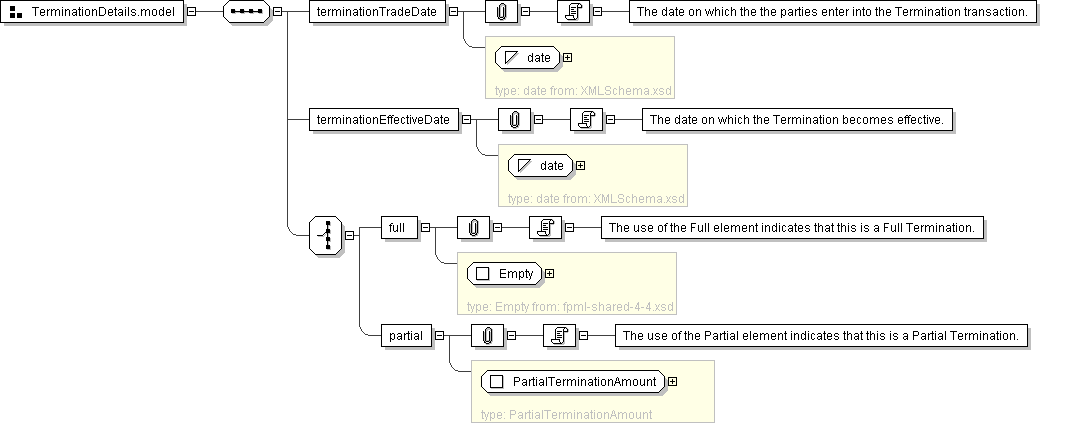

Name	TerminationDetails.model
Used by (from the same schema document)	Complex Type Termination

XML Instance Representation

<terminationTradeDate> xsd:date </terminationTradeDate> [1]

'The date on which the the parties enter into the Termination transaction.'

<terminationEffectiveDate> xsd:date </terminationEffectiveDate> [1]

'The date on which the Termination becomes effective.'

Start Choice [1]

<full> Empty </full> [1]

'The use of the Full element indicates that this is a Full Termination.'

<partial> PartialTerminationAmount </partial> [1]

'The use of the Partial element indicates that this is a Partial Termination.'

End Choice

Schema Component Representation

<xsd:group name="TerminationDetails.model">

<xsd:sequence>

<xsd:element name="terminationTradeDate" type=" xsd:date "/>

<xsd:element name="terminationEffectiveDate" type=" xsd:date "/>

<xsd:choice>

<xsd:element name="full" type=" Empty "/>

<xsd:element name="partial" type=" PartialTerminationAmount "/>

</xsd:choice>

</xsd:sequence>

</xsd:group>
