XML Schema Documentation

Name	TradeCashflows.model
Used by (from the same schema document)	Complex Type TradeCashflowsAsserted , Model Group DefinitionAndCashflows.model , Model Group IdAndTradeCashflows.model
Documentation	A group describing the cashflows owing on a particular adjustedPaymentDate for a specific trade.

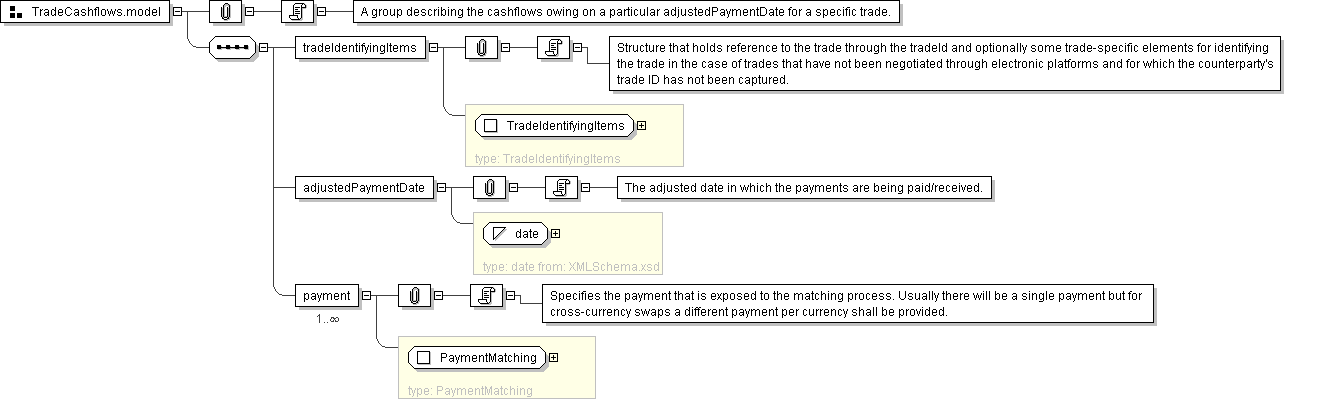

XML Instance Representation

<tradeIdentifyingItems> TradeIdentifyingItems </tradeIdentifyingItems> [1]

'Structure that holds reference to the trade through the tradeId and optionally some trade-specific elements for identifying the trade in the case of trades that have not been negotiated through electronic platforms and for which the counterparty\'s trade ID has not been captured.'

<adjustedPaymentDate> xsd:date </adjustedPaymentDate> [1]

'The adjusted date in which the payments are being paid/received.'

<payment> PaymentMatching </payment> [1..*]

'Specifies the payment that is exposed to the matching process. Usually there will be a single payment but for cross-currency swaps a different payment per currency shall be provided.'

Schema Component Representation

<xsd:group name="TradeCashflows.model">

<xsd:sequence>

<xsd:element name="tradeIdentifyingItems" type=" TradeIdentifyingItems "/>

<xsd:element name="adjustedPaymentDate" type=" xsd:date "/>

<xsd:element name="payment" type=" PaymentMatching " maxOccurs="unbounded"/>

</xsd:sequence>

</xsd:group>
