XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	DerivativeFormula
Used by (from the same schema document)	Model Group ComputedDerivative.model
Abstract	no
Documentation	A formula for computing a complex derivative from partial derivatives. Its value is the sum of the terms divided by the product of the denominator terms.

XML Instance Representation

<...>

<term> FormulaTerm </term> [1]

'A term of the formula. Its value is the product of the its coefficient and the referenced partial derivatives.'

<denominatorTerm> DenominatorTerm </denominatorTerm> [1]

'A denominator term of the formula. Its value is (sum of weighted partials) ^ power.'

</...>

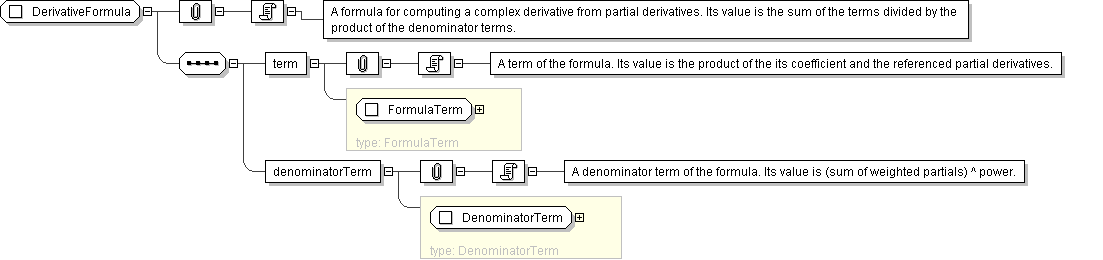

Diagram

Schema Component Representation

<xsd:complexType name="DerivativeFormula">

<xsd:sequence>

<xsd:element name="term" type=" FormulaTerm "/>

<xsd:element name="denominatorTerm" type=" DenominatorTerm "/>

</xsd:sequence>

</xsd:complexType>
