XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	Account
Used by (from the same schema document)	Complex Type Party
Abstract	no
Documentation	A generic account that represents any party's account at another party. Parties may be identified by the account at another party.

XML Instance Representation

<...
id=" xsd:ID [1]

'The unique identifier for the account within the document.'

">
Start Sequence [1..*]

<accountId> AccountId </accountId> [1]

'An account identifier. For example an Account number.'

<accountName> xsd:normalizedString </accountName> [0..1]

'The name by which the account is known.'

End Sequence

<accountBeneficiary> PartyReference </accountBeneficiary> [0..1]

'A reference to the party beneficiary of the account.'

</...>

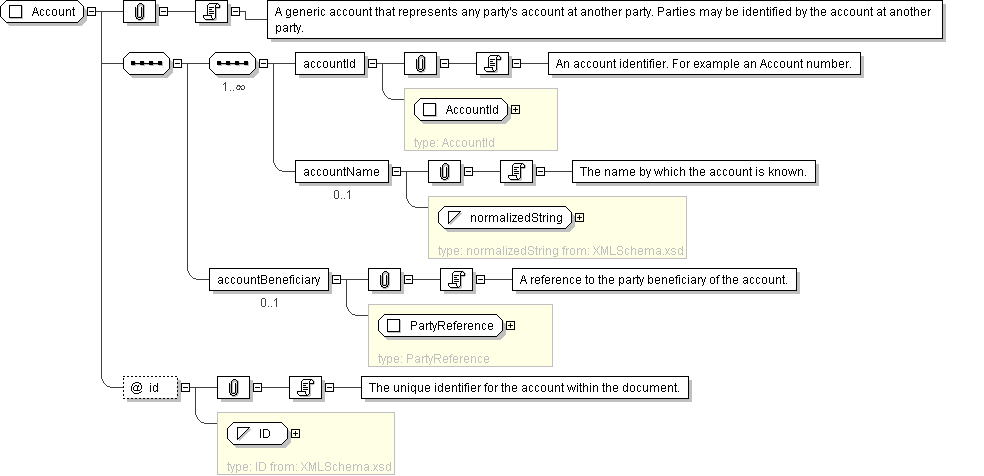

Diagram

Schema Component Representation

<xsd:complexType name="Account">

<xsd:sequence>

<xsd:sequence maxOccurs="unbounded">

<xsd:element name="accountId" type=" AccountId "/>

<xsd:element name="accountName" type=" xsd:normalizedString " minOccurs="0"/>

</xsd:sequence>

<xsd:element name="accountBeneficiary" type=" PartyReference " minOccurs="0"/>

</xsd:sequence>

<xsd:attribute name="id" type=" xsd:ID " use="required"/>

</xsd:complexType>
