XML Schema Documentation

Complex Type: FormulaComponent

[Table of contents]

Super-types:	None
Sub-types:	None

Name	FormulaComponent
Used by (from the same schema document)	Complex Type Formula
Abstract	no
Documentation	Elements describing the components of the formula. The name attribute points to a value used in the math element. The href attribute points to a numeric value defined elsewhere in the document that is used by the formula component.

XML Instance Representation

<...
name=" xsd:normalizedString [0..1]"
href=" xsd:IDREF [0..1]

'This attribute has been DEPRECATED. It will be removed in the next FpML major version. Pointer to a numeric value defined elsewhere in the document that is used by the formula component.'

<componentDescription> xsd:string </componentDescription> [1]

'Text description of the component'

<formula> Formula </formula> [0..1]

'Additional formulas required to describe this component'

</...>

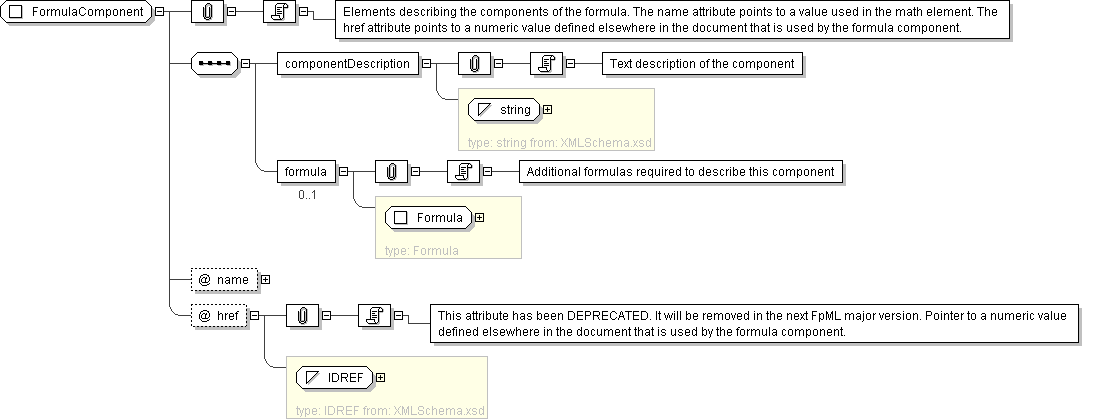

Diagram

Schema Component Representation

<xsd:complexType name="FormulaComponent">

<xsd:sequence>

<xsd:element name="componentDescription" type=" xsd:string "/>

<xsd:element name="formula" type=" Formula " minOccurs="0"/>

</xsd:sequence>

<xsd:attribute name="name" type=" xsd:normalizedString "/>

<xsd:attribute name="href" type=" xsd:IDREF " deprecated="true" deprecatedReason="There was no definition on where this attribute should point at and no clear usage."/>

</xsd:complexType>
