XML Schema Documentation

Complex Type: Interval

[Table of contents]

Super-types:	None
Sub-types:	CalculationPeriodFrequency (by extension) Offset (by extension) DateOffset (by extension) RelativeDateOffset (by extension) AdjustedRelativeDateOffset (by extension) RelativeDates (by extension) ResetFrequency (by extension)

Name	Interval
Used by (from the same schema document)	Complex Type ForecastRateIndex , Model Group FloatingRateIndex.model
Abstract	no
Documentation	A type defining a time interval or offset, e.g. one day, three months. Used for specifying frequencies at which events occur, the tenor of a floating rate or an offset relative to another date.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<periodMultiplier> xsd:integer </periodMultiplier> [1]

'A time period multiplier, e.g. 1, 2 or 3 etc. A negative value can be used when specifying an offset relative to another date, e.g. -2 days. If the period value is T (Term) then periodMultiplier must contain the value 1.'

<period> PeriodEnum </period> [1]

'A time period, e.g. a day, week, month, year or term of the stream. If the periodMultiplier value is 0 (zero) then period must contain the value D (day).'

</...>

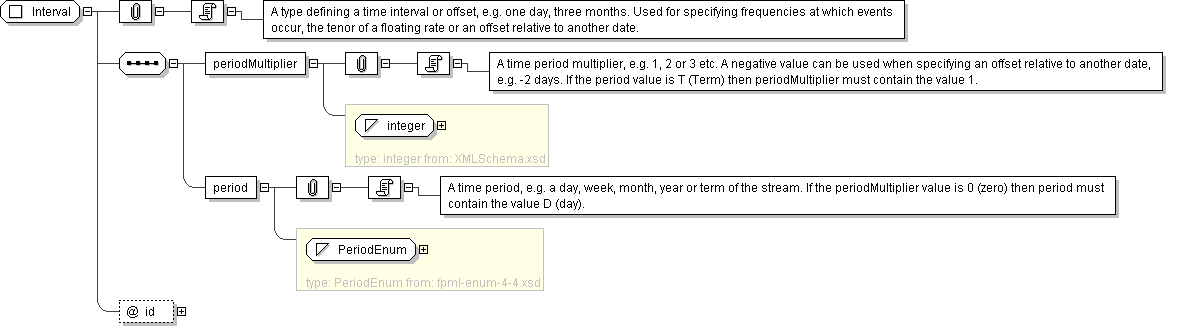

Diagram

Schema Component Representation

<xsd:complexType name="Interval">

<xsd:sequence>

<xsd:element name="periodMultiplier" type=" xsd:integer "/>

<xsd:element name="period" type=" PeriodEnum "/>

</xsd:sequence>

<xsd:attribute name="id" type=" xsd:ID "/>

</xsd:complexType>
