XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	MasterAgreement
Used by (from the same schema document)	Complex Type Documentation
Abstract	no
Documentation	An entity for defining the agreement executed between the parties and intended to govern all OTC derivatives transactions between those parties.

XML Instance Representation

<...>

<masterAgreementType> MasterAgreementType </masterAgreementType> [1]

'The agreement executed between the parties and intended to govern product-specific derivatives transactions between those parties.'

<masterAgreementDate> xsd:date </masterAgreementDate> [0..1]

'The date on which the master agreement was signed.'

</...>

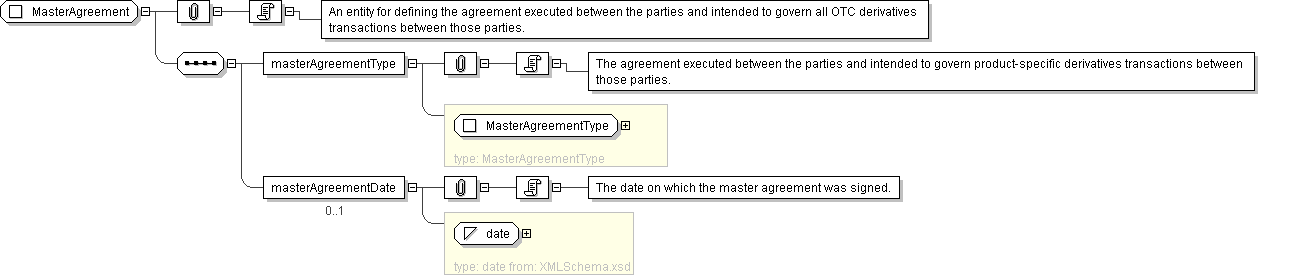

Diagram

Schema Component Representation

<xsd:complexType name="MasterAgreement">

<xsd:sequence>

<xsd:element name="masterAgreementType" type=" MasterAgreementType "/>

<xsd:element name="masterAgreementDate" type=" xsd:date " minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>
