XML Schema Documentation

Super-types:	None
Sub-types:	None

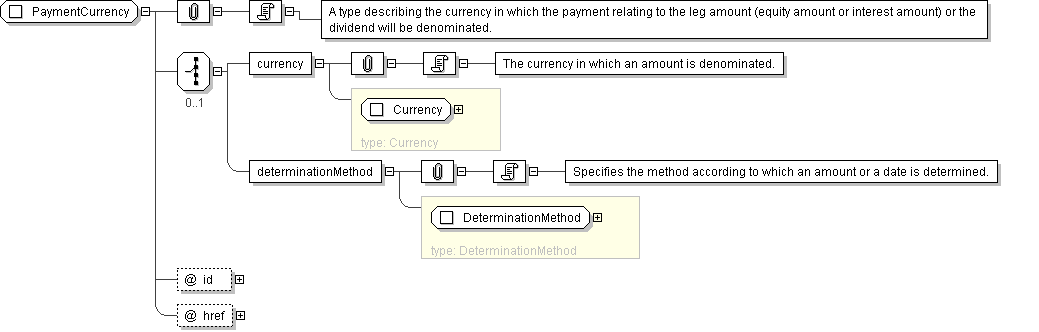

Name	PaymentCurrency
Used by (from the same schema document)	Complex Type DividendConditions
Abstract	no
Documentation	A type describing the currency in which the payment relating to the leg amount (equity amount or interest amount) or the dividend will be denominated.

XML Instance Representation

<...
id=" xsd:ID [0..1]"
href=" xsd:IDREF [0..1]">
Start Choice [0..1]

<currency> Currency </currency> [1]

'The currency in which an amount is denominated.'

<determinationMethod> DeterminationMethod </determinationMethod> [1]

'Specifies the method according to which an amount or a date is determined.'

End Choice
</...>

Schema Component Representation

<xsd:complexType name="PaymentCurrency" deprecated="true" deprecatedReason="The model is wrong since it has an intradocument reference that is not clear. Current PaymentCurrency model and elements using this type are deprecated. Instead, a choice between currency, determinationMethod, and currencyReference (of type CurrencyReference) are inserted at the same level as the elements using PaymentCurrency.">

<xsd:choice minOccurs="0">

<xsd:element name="currency" type=" Currency "/>

<xsd:element name="determinationMethod" type=" DeterminationMethod "/>

</xsd:choice>

<xsd:attribute name="id" type=" xsd:ID "/>

<xsd:attribute name="href" type=" xsd:IDREF "/>

</xsd:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support.

Complex Type: PaymentCurrency
