XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	ReferenceBank
Used by (from the same schema document)	Complex Type CashSettlementReferenceBanks
Abstract	no
Documentation	A type to describe an institution (party) identified by means of a coding scheme and an optional name.

XML Instance Representation

<...>

<referenceBankId> ReferenceBankId </referenceBankId> [1]

'An institution (party) identifier, e.g. a bank identifier code (BIC).'

<referenceBankName> xsd:string </referenceBankName> [0..1]

'The name of the institution (party). A free format string. FpML does not define usage rules for the element.'

</...>

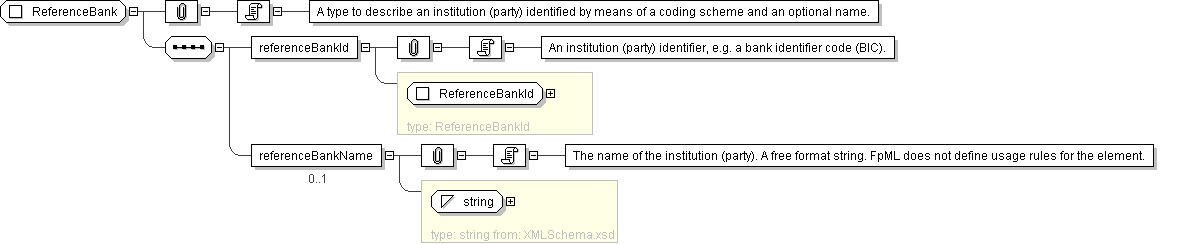

Diagram

Schema Component Representation

<xsd:complexType name="ReferenceBank">

<xsd:sequence>

<xsd:element name="referenceBankId" type=" ReferenceBankId "/>

<xsd:element name="referenceBankName" type=" xsd:string " minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>
