element <payment> (local)
Namespace:
Type:
Content:
complex, 2 attributes, 10 elements
Defined:

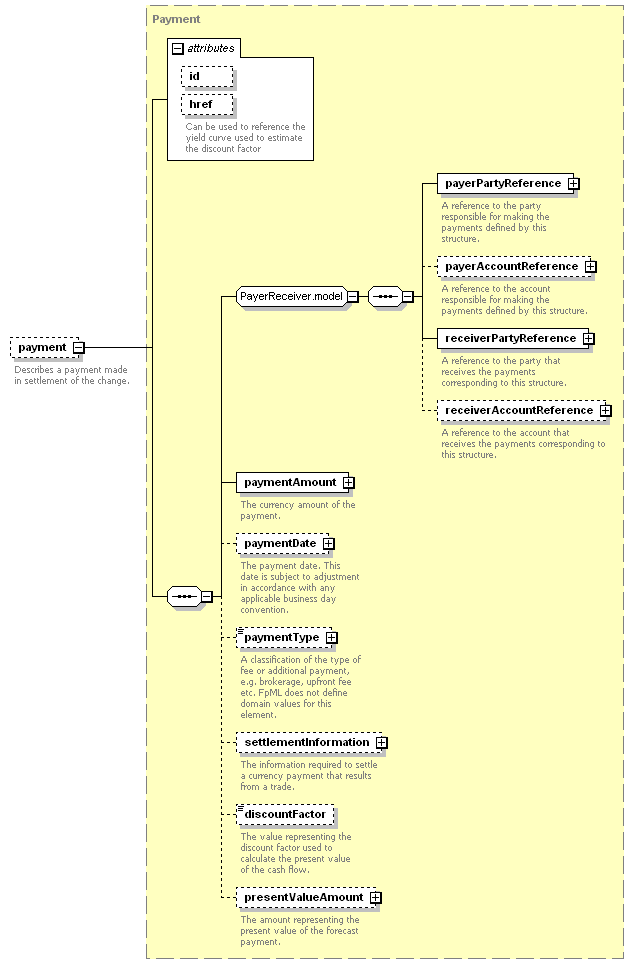

Content Model Diagram
XML Representation Summary
<payment

 =
xsd:ID
 =
xsd:IDREF
    >

Content:
payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, paymentAmount, paymentDate?, paymentType?, settlementInformation?, discountFactor?, presentValueAmount?
</payment>
Content model elements (10):
discountFactor (defined in Payment complexType),
paymentAmount (defined in Payment complexType),
paymentDate (defined in Payment complexType),
paymentType (defined in Payment complexType),
presentValueAmount (defined in Payment complexType),
settlementInformation (defined in Payment complexType)
Included in content model of elements (3):
amendment, increase, termination
Annotation
Describes a payment made in settlement of the change.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="payment" type="Payment"/>
