element <partyTradeIdentifier> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
PartyTradeIdentifier
Content:
complex, 1 attribute, 7 elements
Defined:
locally witnin TradeReferenceInformationContents.model group in fpml-business-events-5-2.xsd; see XML source

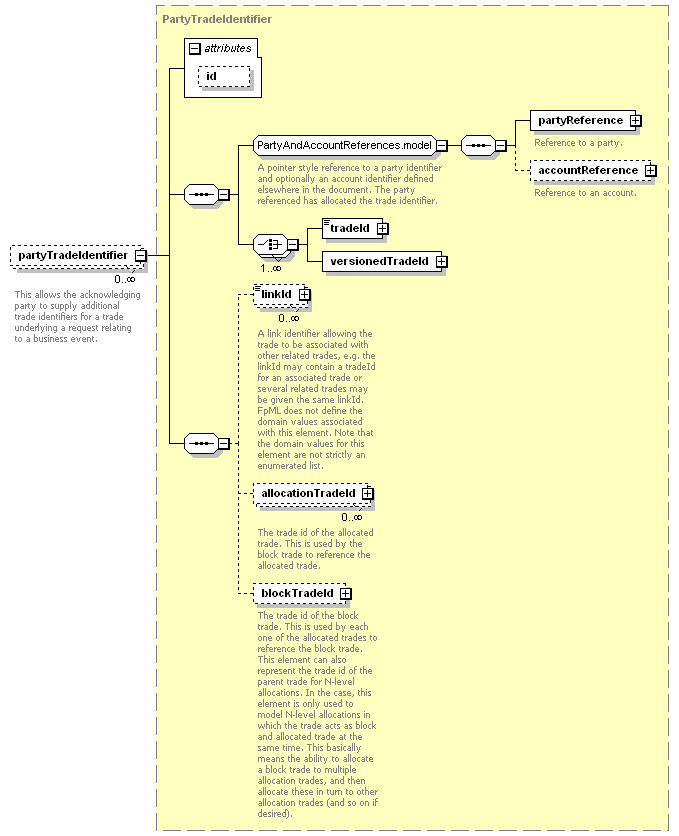

Content Model Diagram
XML Representation Summary
<partyTradeIdentifier

id
 =
 xsd:ID
    >

Content:
 partyReference, accountReference?, (tradeId | versionedTradeId)+, linkId*, allocationTradeId*, blockTradeId?
</partyTradeIdentifier>
Content model elements (7):
accountReference (defined in PartyAndAccountReferences.model group),
allocationTradeId (defined in PartyTradeIdentifier complexType),
blockTradeId,
linkId,
partyReference (defined in PartyAndAccountReferences.model group),
tradeId (defined in TradeIdentifier complexType),
versionedTradeId
Included in content model of elements (1):
tradeReferenceInformation
Annotation
This allows the acknowledging party to supply additional trade identifiers for a trade underlying a request relating to a business event.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="partyTradeIdentifier" type="PartyTradeIdentifier"/>
