element <otherPartyPayment> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	Payment
Content:	complex, 2 attributes, 10 elements
Defined:	locally witnin Trade complexType in fpml-doc-5-2.xsd; see XML source

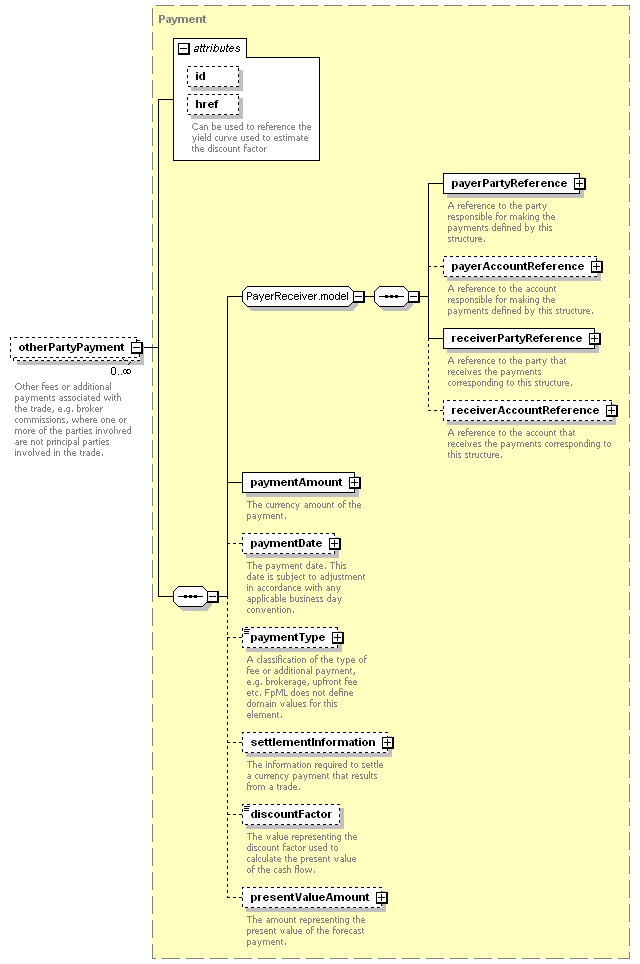

Content Model Diagram

XML Representation Summary

<otherPartyPayment

id	=	xsd:ID
href	=	xsd:IDREF

Content:

payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, paymentAmount, paymentDate?, paymentType?, settlementInformation?, discountFactor?, presentValueAmount?

</otherPartyPayment>

Content model elements (10):

discountFactor (defined in Payment complexType),

payerAccountReference,

payerPartyReference,

paymentAmount (defined in Payment complexType),

paymentDate (defined in Payment complexType),

paymentType (defined in Payment complexType),

presentValueAmount (defined in Payment complexType),

receiverAccountReference,

receiverPartyReference,

settlementInformation (defined in Payment complexType)

Included in content model of elements (12):

newTrade (in novation),

oldTrade (defined in TradeChangeContent complexType),

oldTrade (in novation),

originalTrade,

resultingTrade,

trade (defined in DataDocument complexType),

trade (defined in Events.model group),

trade (defined in TradeChangeContent complexType),

trade (defined in TradeOrInfo.model group),

trade (defined in TradeOrTradeReference.model group),

trade (in amendment)

Annotation

Other fees or additional payments associated with the trade, e.g. broker commissions, where one or more of the parties involved are not principal parties involved in the trade.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="otherPartyPayment" type="Payment"/>
