element <recoveryRateCurve> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
TermCurve
Content:
complex, 3 elements
Defined:
locally witnin RecoveryRate.model group in fpml-mktenv-5-2.xsd; see XML source

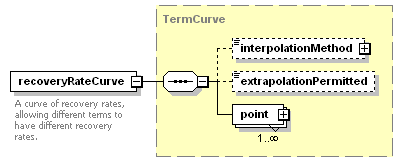

Content Model Diagram
XML Representation Summary
<recoveryRateCurve>

Content:
 interpolationMethod?, extrapolationPermitted?, point+
</recoveryRateCurve>
Content model elements (3):
extrapolationPermitted,
interpolationMethod (defined in TermCurve complexType),
 point (defined in TermCurve complexType)
Included in content model of elements (1):
creditCurveValuation
Annotation
A curve of recovery rates, allowing different terms to have different recovery rates.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="recoveryRateCurve" type="TermCurve"/>
