element <header> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
RequestMessageHeader
Content:
complex, 8 elements
Defined:
locally witnin RequestMessage complexType in fpml-msg-5-2.xsd; see XML source

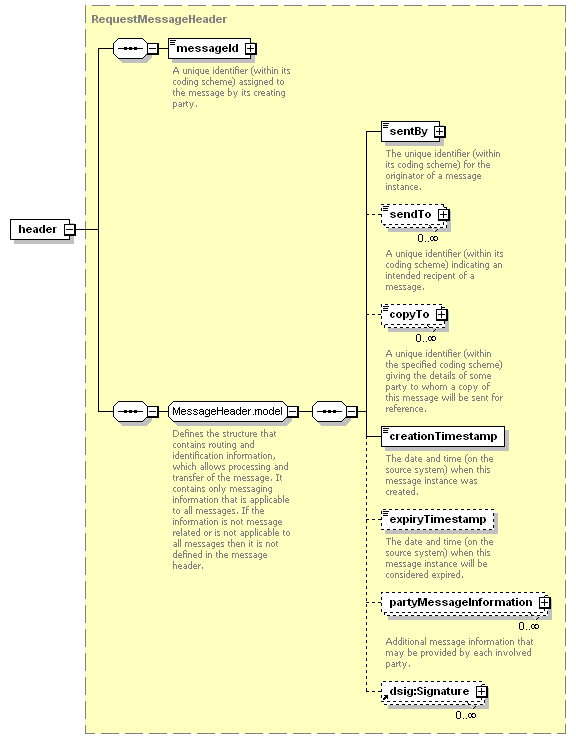

Content Model Diagram
XML Representation Summary
<header>

Content:
 messageId, sentBy, sendTo*, copyTo*, creationTimestamp, expiryTimestamp?, partyMessageInformation*, dsig:Signature*
</header>
Content model elements (8):
copyTo, creationTimestamp, dsig:Signature, expiryTimestamp, messageId, partyMessageInformation, sendTo, sentBy
Included in content model of elements (21):
executionAdvice, executionAdviceRetracted, executionNotification, executionRetracted, maturityNotification, optionExpirationNotification, requestAllocation, requestAllocationRetracted, requestClearing, requestClearingRetracted, requestConfirmation, requestConfirmationRetracted, requestConsent, requestConsentRetracted, requestEventStatus, requestExecution, requestExecutionRetracted, requestTradeReferenceInformationUpdate, requestTradeReferenceInformationUpdateRetracted, tradeChangeAdvice, tradeChangeAdviceRetracted
XML Source (see within schema source)
<xsd:element name="header" type="RequestMessageHeader"/>
