element <additionalData> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	AdditionalData
Content:	complex, 5 elements
Defined:	locally witnin Exception.model group in fpml-msg-5-2.xsd; see XML source

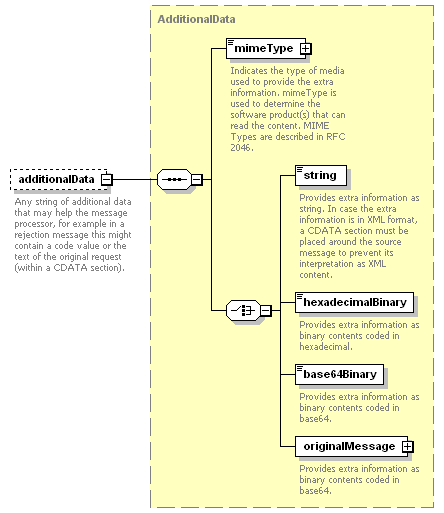

Content Model Diagram

XML Representation Summary

Content:

mimeType, (string | hexadecimalBinary | base64Binary | originalMessage)

</additionalData>

Content model elements (5):

base64Binary,

hexadecimalBinary,

mimeType,

originalMessage (defined in AdditionalData complexType),

string

Included in content model of elements (11):

allocationException, clearingException, confirmationException, consentException, eventStatusException, executionAdviceException, executionException, maturityException, messageRejected, tradeChangeAdviceException, tradeReferenceInformationUpdateException

Annotation

Any string of additional data that may help the message processor, for example in a rejection message this might contain a code value or the text of the original request (within a CDATA section).

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="additionalData" type="AdditionalData"/>
