element <reason> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Reason
Content:
complex, 5 elements
Defined:
locally witnin Exception.model group in fpml-msg-5-2.xsd; see XML source

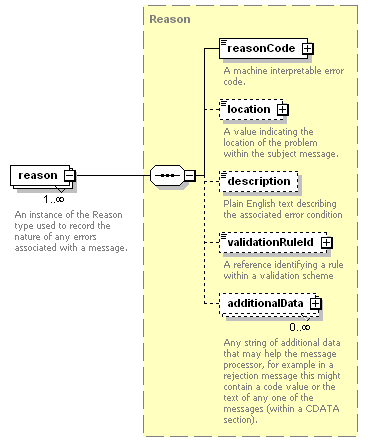

Content Model Diagram
XML Representation Summary
<reason>

Content:
 reasonCode, location?, description?, validationRuleId?, additionalData*
</reason>
Content model elements (5):
additionalData (defined in Reason complexType),
description (defined in Reason complexType),
location (defined in Reason complexType),
 reasonCode,
Included in content model of elements (11):
allocationException, clearingException, confirmationException, consentException, eventStatusException, executionAdviceException, executionException, maturityException, messageRejected, tradeChangeAdviceException, tradeReferenceInformationUpdateException
Annotation
An instance of the Reason type used to record the nature of any errors associated with a message.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="reason" type="Reason"/>
