element <exchangeId> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
ExchangeId
Content:
simple, 1 attribute
Defined:
locally witnin CommodityReferencePriceFramework.model group in fpml-asset-5-3.xsd; see XML source

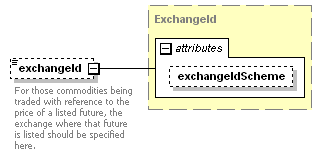

Content Model Diagram
XML Representation Summary
<exchangeId

exchangeIdScheme
 =
 xsd:anyURI : "http://www.fpml.org/spec/2002/exchange-id-MIC-1-0"
    >

Content:
 { xsd:normalizedString }
</exchangeId>
Simple Content Detail:
MaxLength:
 255
Included in content model of elements (3):
commodity, commodity (in floatingLeg)
Annotation
For those commodities being traded with reference to the price of a listed future, the exchange where that future is listed should be specified here.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="exchangeId" type="ExchangeId"/>
