element <increase> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
TradeNotionalChange
Content:
complex, 12 elements
Defined:
locally witnin Events.model group in fpml-business-events-5-3.xsd; see XML source

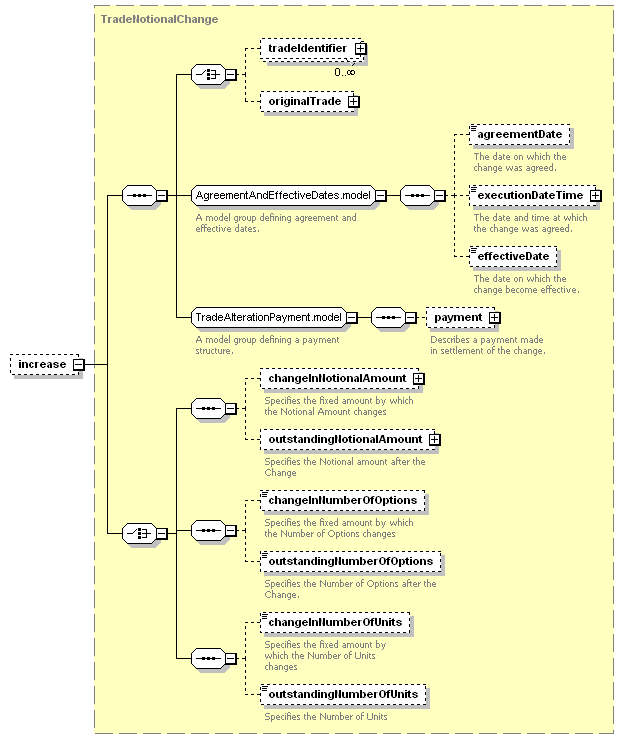

Content Model Diagram
XML Representation Summary
<increase>

Content:
 (tradeIdentifier* | originalTrade?), agreementDate?, executionDateTime?, effectiveDate?, payment?, ((changeInNotionalAmount?, outstandingNotionalAmount?) | (changeInNumberOfOptions?, outstandingNumberOfOptions?) | (changeInNumberOfUnits?, outstandingNumberOfUnits?))
</increase>
Content model elements (12):
agreementDate,
changeInNotionalAmount,
changeInNumberOfOptions,
changeInNumberOfUnits,
effectiveDate (defined in AgreementAndEffectiveDates.model group),
executionDateTime (defined in AgreementAndEffectiveDates.model group),
originalTrade,
outstandingNotionalAmount (defined in TradeNotionalChange complexType),
outstandingNumberOfOptions (defined in TradeNotionalChange complexType),
outstandingNumberOfUnits (defined in TradeNotionalChange complexType),
payment (defined in TradeAlterationPayment.model group),
tradeIdentifier (defined in TradeChangeBase complexType)
Included in content model of elements (3):
eventActivityReport, reason (in positionUpdate)
XML Source (see within schema source)
<xsd:element minOccurs="0" name="increase" type="TradeNotionalChange"/>
