element <optionExpiry> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
OptionExpiry
Content:
complex, 4 elements
Defined:
locally witnin Events.model group in fpml-business-events-5-3.xsd; see XML source

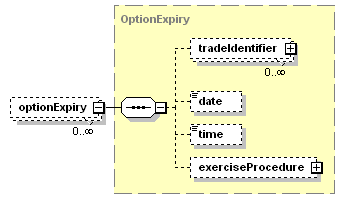

Content Model Diagram
XML Representation Summary
<optionExpiry>

Content:
 tradeIdentifier*, date?, time?, exerciseProcedure?
</optionExpiry>
Content model elements (4):
date (in optionExpiry defined in Events.model group),
exerciseProcedure (in optionExpiry defined in Events.model group),
time (in optionExpiry defined in Events.model group),
tradeIdentifier (in optionExpiry defined in Events.model group)
Included in content model of elements (3):
eventActivityReport, reason (in positionUpdate)
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="optionExpiry" type="OptionExpiry">
<!-- made repeatable so multiple options expiring can be specified in a single message -->
</xsd:element>
