group "TradeOrInfo.model"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
3 elements
Defined:
globally in fpml-business-events-5-3.xsd; see XML source
Includes:
definitions of 2 elements
Used:
never

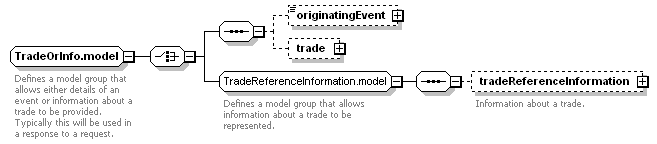

Content Model Diagram
Complex Content Model
(originatingEvent?, trade?) | tradeReferenceInformation?
Content Model Elements (3):
originatingEvent (defined in TradeOrInfo.model group),
trade (defined in TradeOrInfo.model group),
 tradeReferenceInformation
Annotation
Defines a model group that allows either details of an event or information about a trade to be provided. Typically this will be used in a response to a request.
XML Source (w/o annotations (1); see within schema source)
<xsd:group name="TradeOrInfo.model">
<xsd:choice>
<xsd:sequence>
<xsd:element minOccurs="0" name="originatingEvent" type="OriginatingEvent"/>
<xsd:element minOccurs="0" name="trade" type="Trade"/>
</xsd:sequence>
<xsd:group ref="TradeReferenceInformation.model"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 2/3)
originatingEvent
Type:
OriginatingEvent, simple content
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (see within schema source)
<xsd:element minOccurs="0" name="originatingEvent" type="OriginatingEvent"/>
trade
Type:
Trade, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="trade" type="Trade"/>
