element <segregatedIndependentAmount> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
SubstituteCollateral
Content:
complex, 4 elements
Defined:
locally witnin SubstitutionDetails.model group in fpml-collateral-processes-5-3.xsd; see XML source

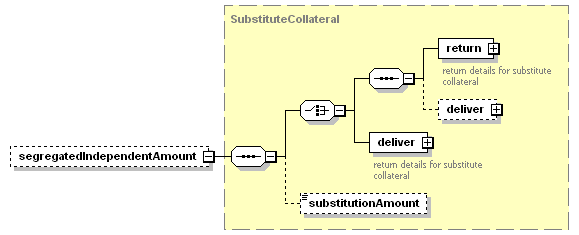

Content Model Diagram
XML Representation Summary
<segregatedIndependentAmount>

Content:
 ((return, deliver?) | deliver), substitutionAmount?
</segregatedIndependentAmount>
Content model elements (4):
deliver (defined in SubstituteCollateral complexType),
deliver (defined in SubstituteCollateral complexType),
 return (defined in SubstituteCollateral complexType),
Included in content model of elements (1):
requestSubstitution
XML Source (see within schema source)
<xsd:element minOccurs="0" name="segregatedIndependentAmount" type="SubstituteCollateral"/>
