element <calculationPeriodsSchedule> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
CommodityCalculationPeriodsSchedule
Content:
complex, 1 attribute, 3 elements
Defined:
locally witnin CommodityCalculationPeriods.model group in fpml-com-5-3.xsd; see XML source

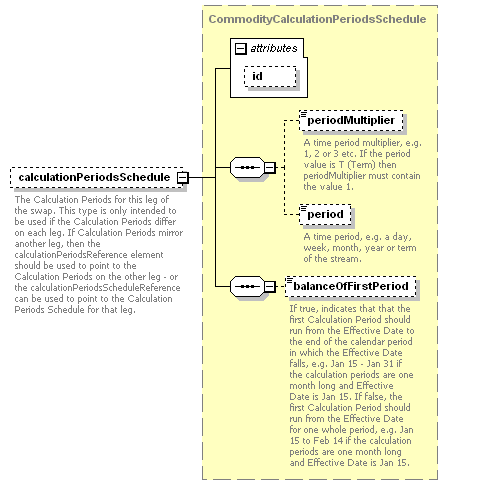

Content Model Diagram
XML Representation Summary
<calculationPeriodsSchedule

id
 =
 xsd:ID
    >

Content:
 periodMultiplier?, period?, balanceOfFirstPeriod?
</calculationPeriodsSchedule>
Content model elements (3):
balanceOfFirstPeriod,
period (defined in Frequency complexType),
 periodMultiplier (defined in Frequency complexType)
Included in content model of elements (2):
fixedLeg (in commoditySwap), floatingLeg
Annotation
The Calculation Periods for this leg of the swap. This type is only intended to be used if the Calculation Periods differ on each leg. If Calculation Periods mirror another leg, then the calculationPeriodsReference element should be used to point to the Calculation Periods on the other leg - or the calculationPeriodsScheduleReference can be used to point to the Calculation Periods Schedule for that leg.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="calculationPeriodsSchedule" type="CommodityCalculationPeriodsSchedule"/>
