group "CommodityCoalProperties.model"
Namespace:
Content:
Defined:
globally in fpml-com-5-3.xsd; see XML source
Includes:
definitions of 5 elements
Used:

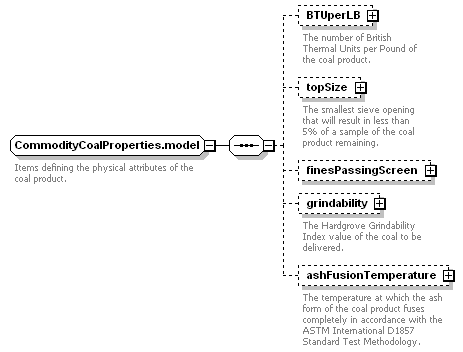

Content Model Diagram
Complex Content Model
BTUperLB?, topSize?, finesPassingScreen?, grindability?, ashFusionTemperature?
Content Model Elements (5):
ashFusionTemperature, BTUperLB, finesPassingScreen, grindability, topSize
Known Usage Locations
Annotation
Items defining the physical attributes of the coal product.
XML Source (w/o annotations (5); see within schema source)
<xsd:group name="CommodityCoalProperties.model">
<xsd:sequence>
<xsd:element minOccurs="0" name="BTUperLB" type="CoalAttributeDecimal"/>
<xsd:element minOccurs="0" name="topSize" type="CoalAttributeDecimal"/>
<xsd:element minOccurs="0" name="finesPassingScreen" type="CoalAttributeDecimal"/>
<xsd:element minOccurs="0" name="grindability" type="CoalAttributeDecimal"/>
<xsd:element minOccurs="0" name="ashFusionTemperature" type="CoalAttributeDecimal"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 5/5)
ashFusionTemperature
Type:
CoalAttributeDecimal, complex content
The temperature at which the ash form of the coal product fuses completely in accordance with the ASTM International D1857 Standard Test Methodology.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="ashFusionTemperature" type="CoalAttributeDecimal"/>

BTUperLB
Type:
CoalAttributeDecimal, complex content
The number of British Thermal Units per Pound of the coal product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="BTUperLB" type="CoalAttributeDecimal"/>

finesPassingScreen
Type:
CoalAttributeDecimal, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="finesPassingScreen" type="CoalAttributeDecimal"/>

grindability
Type:
CoalAttributeDecimal, complex content
The Hardgrove Grindability Index value of the coal to be delivered.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="grindability" type="CoalAttributeDecimal"/>

topSize
Type:
CoalAttributeDecimal, complex content
The smallest sieve opening that will result in less than 5% of a sample of the coal product remaining.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="topSize" type="CoalAttributeDecimal"/>
