group "IndexAnnexFallback.model"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
2 elements
Defined:
globally in fpml-eq-shared-5-3.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 2 locations

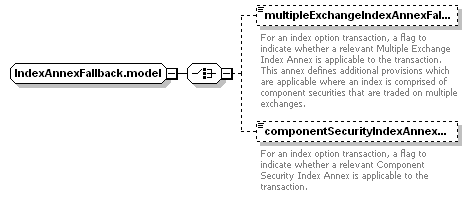

Content Model Diagram
Complex Content Model
multipleExchangeIndexAnnexFallback? | componentSecurityIndexAnnexFallback?
Content Model Elements (2):
componentSecurityIndexAnnexFallback, multipleExchangeIndexAnnexFallback
Known Usage Locations
XML Source (w/o annotations (2); see within schema source)
<xsd:group name="IndexAnnexFallback.model">
<xsd:choice>
<xsd:element minOccurs="0" name="multipleExchangeIndexAnnexFallback" type="xsd:boolean"/>
<xsd:element minOccurs="0" name="componentSecurityIndexAnnexFallback" type="xsd:boolean"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 2/2)
componentSecurityIndexAnnexFallback
Type:
xsd:boolean, predefined, simple content
For an index option transaction, a flag to indicate whether a relevant Component Security Index Annex is applicable to the transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="componentSecurityIndexAnnexFallback" type="xsd:boolean"/>
multipleExchangeIndexAnnexFallback
Type:
xsd:boolean, predefined, simple content
For an index option transaction, a flag to indicate whether a relevant Multiple Exchange Index Annex is applicable to the transaction. This annex defines additional provisions which are applicable where an index is comprised of component securities that are traded on multiple exchanges.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="multipleExchangeIndexAnnexFallback" type="xsd:boolean"/>
