Namespace: |
|
Content: |
complex, 1 attribute, 16 elements |
Defined: |
globally in fpml-generic-5-3.xsd; see XML source |
Includes: |
definitions of 9 elements |
Used: |
at 2 locations |
XML Representation Summary |
||||||
<... | ||||||
|
||||||
> | ||||||
|
||||||
</...> |
assetClass (defined in Product.model group), | productId (defined in Product.model group), |

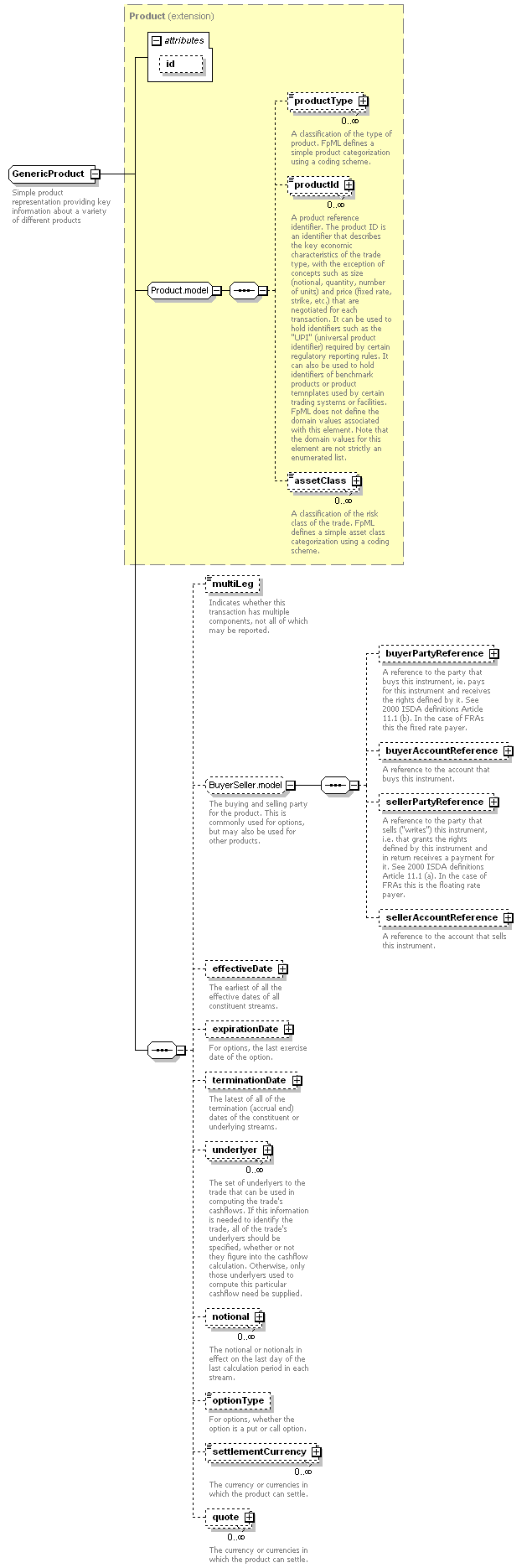

Type Derivation Tree GenericProduct |
<xsd:complexType name="GenericProduct"> <xsd:complexContent> <xsd:sequence> <!-- BAL 2011-10-06 restored option type for consistency with 5.2 --> <!-- LL 9/14/11 commented out pending WG/SC decision on how to proceed with generic properties, reverted to original definitions from 5.2TR <xsd:element name="exerciseStyle" type="GenericExerciseStyle" minOccurs="0"> <xsd:annotation> <xsd:documentation xml:lang="en">For options, whether the option is a put or call option.</xsd:documentation> </xsd:annotation> </xsd:element> --> <xsd:element maxOccurs="unbounded" minOccurs="0" name="settlementCurrency" type="IdentifiedCurrency"/> <!-- <xsd:group ref="GenericProductProperty.model" minOccurs="0" maxOccurs="unbounded" /> --> </xsd:sequence> </xsd:extension> </xsd:complexContent> </xsd:complexType> |
Type: |
AdjustableDate2, complex content |
<xsd:element minOccurs="0" name="effectiveDate" type="AdjustableDate2"/> |
Type: |
AdjustableDate2, complex content |
<xsd:element minOccurs="0" name="expirationDate" type="AdjustableDate2"/> |
Type: |
xsd:boolean, predefined, simple content |
<xsd:element minOccurs="0" name="multiLeg" type="xsd:boolean"/> |
Type: |
CashflowNotional, complex content |
<xsd:element maxOccurs="unbounded" minOccurs="0" name="notional" type="CashflowNotional"/> |
Type: |
OptionTypeEnum, simple content |
("Put" | "Call") | ("Payer" | "Receiver" | "Straddle") |
<xsd:element minOccurs="0" name="optionType" type="OptionTypeEnum"/> |
Type: |
BasicQuotation, complex content |
<xsd:element maxOccurs="unbounded" minOccurs="0" name="quote" type="BasicQuotation"/> |
Type: |
IdentifiedCurrency, simple content |
xsd:normalizedString |
maxLength: |
255 |
<xsd:element maxOccurs="unbounded" minOccurs="0" name="settlementCurrency" type="IdentifiedCurrency"/> |
Type: |
AdjustableDate2, complex content |
<xsd:element minOccurs="0" name="terminationDate" type="AdjustableDate2"/> |
Type: |
TradeUnderlyer2, complex content |
<xsd:element maxOccurs="unbounded" minOccurs="0" name="underlyer" type="TradeUnderlyer2"/> |
