complexType "CapFloor"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
complex, 1 attribute, 7 elements
Defined:
globally in fpml-ird-5-3.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 1 location

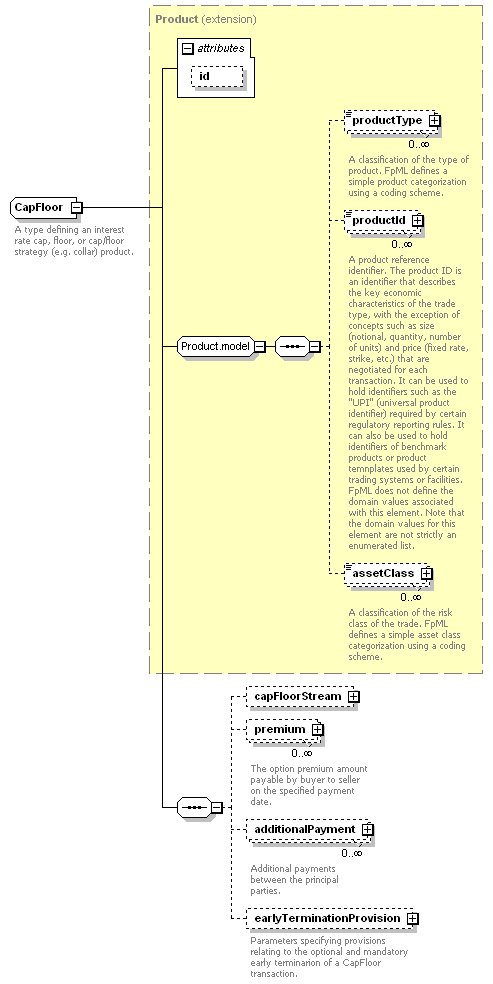

Content Model Diagram
XML Representation Summary
<...

id
 =
 xsd:ID
    >

Content:
 productType*, productId*, assetClass*, capFloorStream?, premium*, additionalPayment*, earlyTerminationProvision?
</...>
Content Model Elements (7):
additionalPayment (in capFloor),
assetClass (defined in Product.model group),
 premium (in capFloor),
productId (defined in Product.model group),
productType (defined in Product.model group)
All Direct / Indirect Based Elements (1):
capFloor
Known Usage Locations
Annotation
A type defining an interest rate cap, floor, or cap/floor strategy (e.g. collar) product.
Type Definition Detail
Type Derivation Tree
Product (extension)
  CapFloor
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="CapFloor">
<xsd:complexContent>
<xsd:extension base="Product">
<xsd:sequence>
<xsd:element minOccurs="0" name="capFloorStream" type="InterestRateStream"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="premium" type="Payment"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="additionalPayment" type="Payment"/>
<xsd:element minOccurs="0" name="earlyTerminationProvision" type="EarlyTerminationProvision"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 4/7)
additionalPayment
Type:
Payment, complex content
Additional payments between the principal parties.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="additionalPayment" type="Payment"/>
capFloorStream
Type:
InterestRateStream, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="capFloorStream" type="InterestRateStream"/>
earlyTerminationProvision
Type:
EarlyTerminationProvision, complex content
Parameters specifying provisions relating to the optional and mandatory early terminarion of a CapFloor transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="earlyTerminationProvision" type="EarlyTerminationProvision"/>
premium
Type:
Payment, complex content
The option premium amount payable by buyer to seller on the specified payment date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="premium" type="Payment"/>
