element <requestPortfolio> (global)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
RequestPortfolio
Content:
complex, 3 attributes, 7 elements
Defined:
globally in fpml-reconciliation-5-3.xsd; see XML source
Used:
never

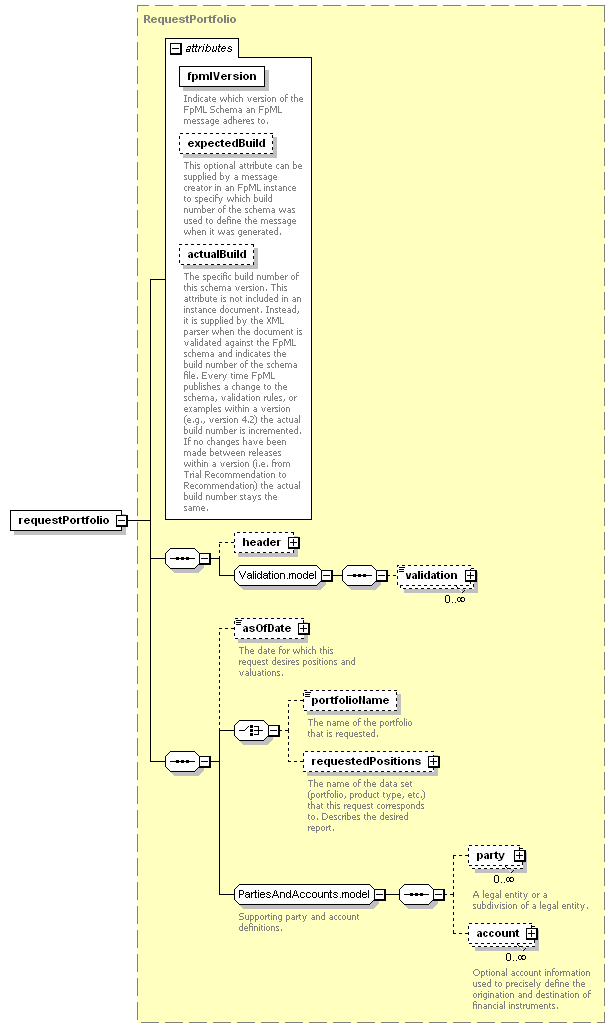

Content Model Diagram
XML Representation Summary
<requestPortfolio

fpmlVersion
 =
 xsd:token
expectedBuild
 =
 xsd:positiveInteger
actualBuild
 =
 "2"
    >

Content:
 header?, validation*, asOfDate?, (portfolioName? | requestedPositions?), party*, account*
</requestPortfolio>
Content model elements (7):
account,
header (defined in RequestMessage complexType),
party (defined in PartiesAndAccounts.model group),
 portfolioName (in requestPortfolio),
XML Source (see within schema source)
<xsd:element name="requestPortfolio" type="RequestPortfolio"/>
