element <tradeIdentifyingItems> (local)

Namespace:	http://www.fpml.org/FpML-5/reporting
Type:	TradeIdentifyingItems
Content:	complex, 2 elements
Defined:	locally witnin TradeCashflows.model group in fpml-reconciliation-5-3.xsd; see XML source

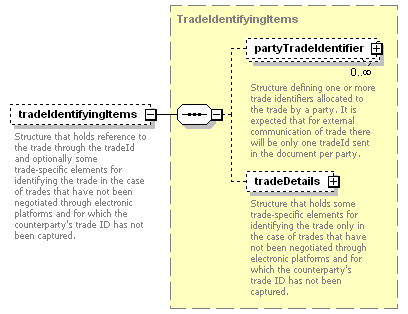

Content Model Diagram

XML Representation Summary

Content:

partyTradeIdentifier*, tradeDetails?

</tradeIdentifyingItems>

Content model elements (2):

partyTradeIdentifier (defined in TradeIdentifyingItems complexType),

tradeDetails

Included in content model of elements (5):

allegedCashflow (in tradeCashflowsMatchResult),

assertedCashflow (in tradeCashflowsMatchResult),

cancelTradeCashflows,

proposedMatch (in tradeCashflowsMatchResult),

tradeCashflowsAsserted

Annotation

Structure that holds reference to the trade through the tradeId and optionally some trade-specific elements for identifying the trade in the case of trades that have not been negotiated through electronic platforms and for which the counterparty's trade ID has not been captured.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="tradeIdentifyingItems" type="TradeIdentifyingItems"/>
