complexType "ResetReport"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
complex, 3 attributes, 15 elements
Defined:
globally in fpml-reporting-5-3.xsd; see XML source
Includes:
definitions of 7 elements
Used:
at 1 location

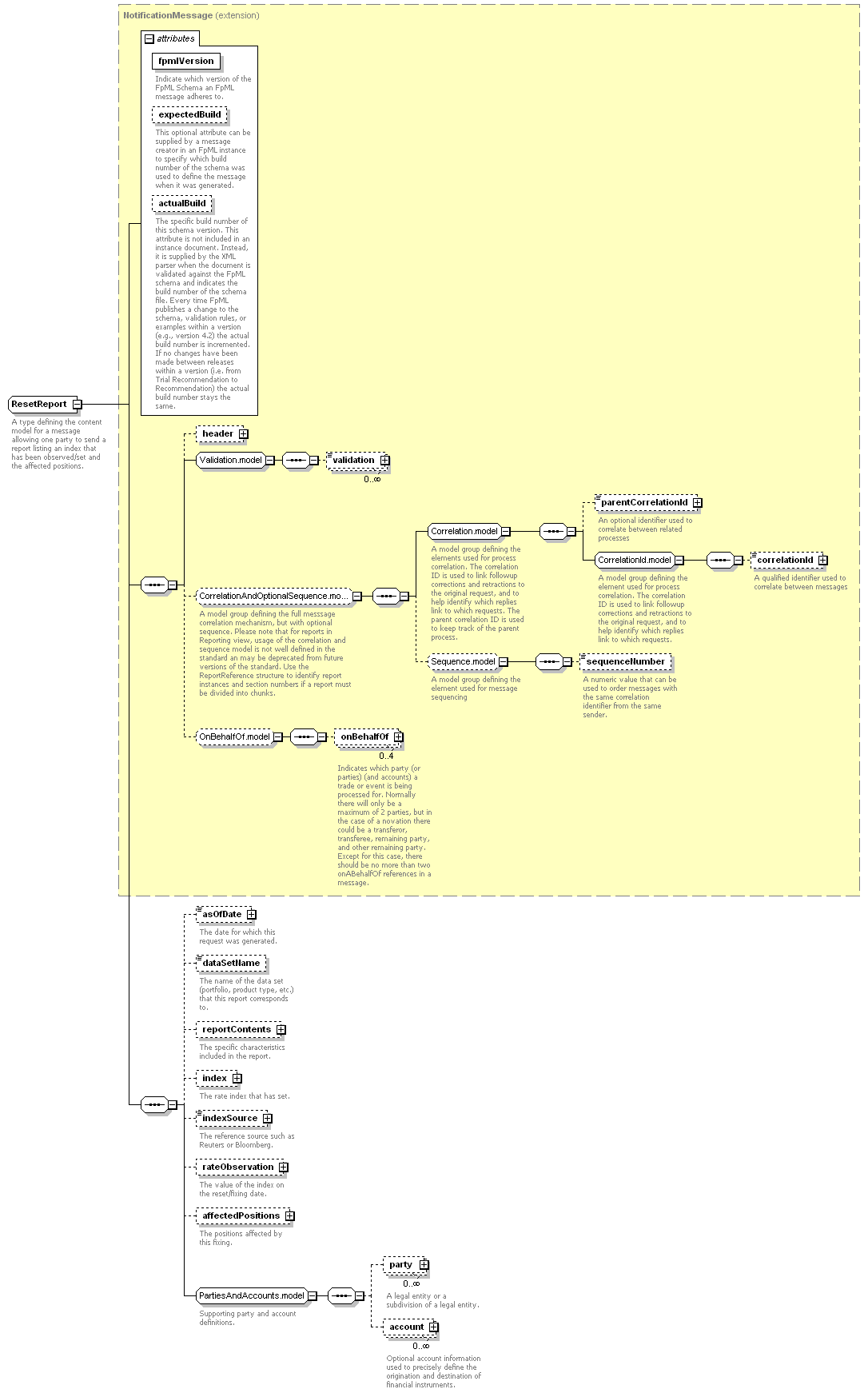

Content Model Diagram
XML Representation Summary
<...

fpmlVersion
 =
 xsd:token
expectedBuild
 =
 xsd:positiveInteger
actualBuild
 =
 "2"
    >

Content:
 header?, validation*, (parentCorrelationId?, correlationId?, sequenceNumber??)?, onBehalfOf[0..4]?, asOfDate?, dataSetName?, reportContents?, index?, indexSource?, rateObservation?, affectedPositions?, party*, account*
</...>
Content Model Elements (15):
account,
header (defined in NotificationMessage complexType),
 onBehalfOf (defined in OnBehalfOf.model group),
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
All Direct / Indirect Based Elements (1):
resetReport
Known Usage Locations
Annotation
A type defining the content model for a message allowing one party to send a report listing an index that has been observed/set and the affected positions.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      NotificationMessage (extension)
          ResetReport
XML Source (w/o annotations (8); see within schema source)
<xsd:complexType name="ResetReport">
<xsd:complexContent>
<xsd:extension base="NotificationMessage">
<xsd:sequence>
<xsd:element minOccurs="0" name="asOfDate" type="IdentifiedDate"/>
<xsd:element minOccurs="0" name="dataSetName" type="xsd:normalizedString"/>
<xsd:element minOccurs="0" name="reportContents" type="ReportContents"/>
<xsd:element minOccurs="0" name="index" type="ForecastRateIndex"/>
<xsd:element minOccurs="0" name="indexSource" type="RateSourcePage"/>
<xsd:element minOccurs="0" name="rateObservation" type="RateObservation"/>
<xsd:element minOccurs="0" name="affectedPositions" type="AffectedPositions"/>
<xsd:group ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 7/15)
affectedPositions
Type:
AffectedPositions, complex content
The positions affected by this fixing.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="affectedPositions" type="AffectedPositions"/>
asOfDate
Type:
IdentifiedDate, simple content
The date for which this request was generated.
Simple Content
xsd:date
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="asOfDate" type="IdentifiedDate"/>
dataSetName
Type:
xsd:normalizedString, predefined, simple content
The name of the data set (portfolio, product type, etc.) that this report corresponds to.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="dataSetName" type="xsd:normalizedString"/>
index
Type:
ForecastRateIndex, complex content
The rate index that has set.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="index" type="ForecastRateIndex"/>
indexSource
Type:
RateSourcePage, simple content
The reference source such as Reuters or Bloomberg.
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="indexSource" type="RateSourcePage"/>
rateObservation
Type:
RateObservation, complex content
The value of the index on the reset/fixing date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="rateObservation" type="RateObservation"/>
reportContents
Type:
ReportContents, complex content
The specific characteristics included in the report.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="reportContents" type="ReportContents"/>
