group "BusinessCentersOrReference.model"

Namespace:	http://www.fpml.org/FpML-5/reporting
Content:	2 elements
Defined:	globally in fpml-shared-5-3.xsd; see XML source
Includes:	definitions of 2 elements
Used:	at 7 locations

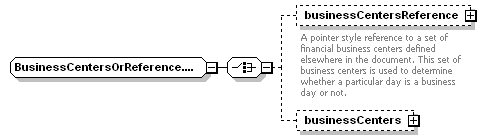

Content Model Diagram

Complex Content Model

businessCentersReference? | businessCenters?

Content Model Elements (2):

businessCenters, businessCentersReference

Known Usage Locations

In definitions of global complexTypes (7):
BusinessDateRange, BusinessDayAdjustments, CommodityRelativeExpirationDates, CommodityRelativePaymentDates, FxFixingDate, RelativeDateOffset, RelativeDateSequence

XML Source (w/o annotations (1); see within schema source)

<xsd:group name="BusinessCentersOrReference.model">

<xsd:choice>

<xsd:element minOccurs="0" name="businessCentersReference" type="BusinessCentersReference"/>

<xsd:element minOccurs="0" name="businessCenters" type="BusinessCenters"/>

</xsd:choice>

</xsd:group>

Content Element Detail (all declarations; defined within this component only; 2/2)

businessCenters

Type:

BusinessCenters, complex content

XML Source (see within schema source)

<xsd:element minOccurs="0" name="businessCenters" type="BusinessCenters"/>

businessCentersReference

Type:

BusinessCentersReference, empty content

A pointer style reference to a set of financial business centers defined elsewhere in the document. This set of business centers is used to determine whether a particular day is a business day or not.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="businessCentersReference" type="BusinessCentersReference"/>
