complexType "Position"

Namespace:	http://www.fpml.org/FpML-5/reporting
Content:	complex, 1 attribute, 10 elements
Defined:	globally in fpml-valuation-5-3.xsd; see XML source
Includes:	definitions of 1 attribute, 4 elements
Used:	at 4 locations

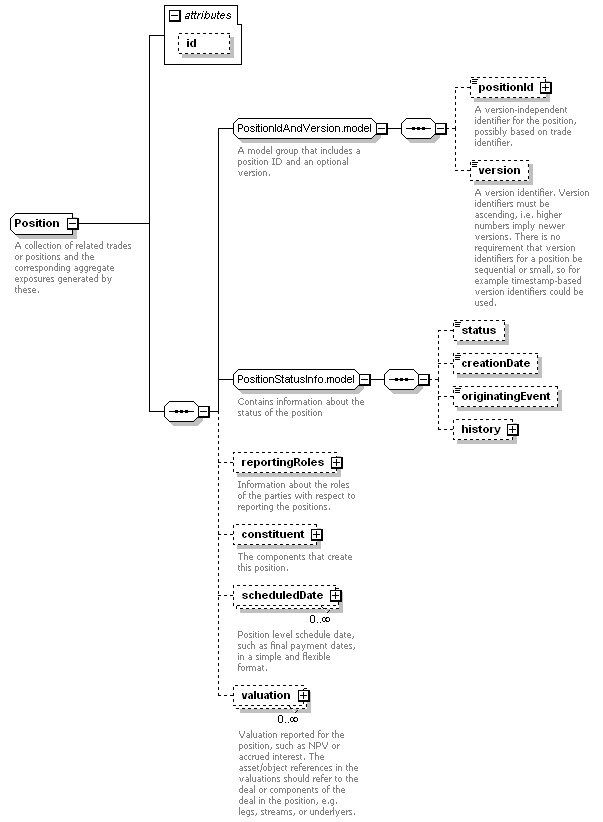

Content Model Diagram

XML Representation Summary

<...

xsd:ID

Content:

positionId?, version?, status?, creationDate?, originatingEvent?, history?, reportingRoles?, constituent?, scheduledDate*, valuation*

</...>

Content Model Elements (10):

constituent (defined in Position complexType),

creationDate,

history,

originatingEvent (defined in PositionStatusInfo.model group),

positionId,

reportingRoles (defined in Position complexType),

scheduledDate (defined in Position complexType),

status (defined in PositionStatusInfo.model group),

valuation (defined in Position complexType),

version (defined in PositionIdAndVersion.model group)

Known Direct Subtypes (2):

DefinePosition, ReportedPosition

All Direct / Indirect Based Elements (5):

definePosition (in positionsAsserted),

position (in affectedPositions),

position (in positionReport),

position (in positionUpdate)

Known Usage Locations

In derivations of other global types (2):

DefinePosition (as extension base), ReportedPosition (as extension base)
As direct type of elements (2):

position (in affectedPositions), position (in positionUpdate)

Annotation

A collection of related trades or positions and the corresponding aggregate exposures generated by these.

XML Source (w/o annotations (5); see within schema source)

<xsd:complexType name="Position">

<xsd:sequence>

<xsd:group ref="PositionIdAndVersion.model"/>

<xsd:group ref="PositionStatusInfo.model"/>

<xsd:element minOccurs="0" name="reportingRoles" type="ReportingRoles"/>

<xsd:element minOccurs="0" name="constituent" type="PositionConstituent"/>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="scheduledDate" type="ScheduledDate"/>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="valuation" type="AssetValuation"/>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

Attribute Detail (all declarations; defined within this component only; 1/1)

Type:	xsd:ID, predefined
Use:	optional

XML Source (see within schema source)

<xsd:attribute name="id" type="xsd:ID"/>

Content Element Detail (all declarations; defined within this component only; 4/10)

constituent

Type:

PositionConstituent, complex content

The components that create this position.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="constituent" type="PositionConstituent"/>

reportingRoles

Type:

ReportingRoles, complex content

Information about the roles of the parties with respect to reporting the positions.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="reportingRoles" type="ReportingRoles"/>

scheduledDate

Type:

ScheduledDate, complex content

Position level schedule date, such as final payment dates, in a simple and flexible format.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="scheduledDate" type="ScheduledDate"/>

valuation

Type:

AssetValuation, complex content

Valuation reported for the position, such as NPV or accrued interest. The asset/object references in the valuations should refer to the deal or components of the deal in the position, e.g. legs, streams, or underlyers.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="valuation" type="AssetValuation"/>
