element <difference> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
TradeDifference
Content:
complex, 10 elements
Defined:
locally witnin ProposedMatch.model group in fpml-business-events-5-5.xsd; see XML source

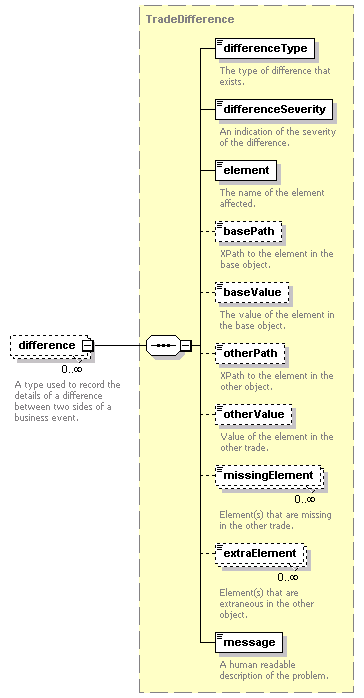

Content Model Diagram
XML Representation Summary
<difference>

Content:
 differenceType, differenceSeverity, element, basePath?, baseValue?, otherPath?, otherValue?, missingElement*, extraElement*, message
</difference>
Content model elements (10):
basePath, baseValue, differenceSeverity, differenceType, element, extraElement, message, missingElement, otherPath, otherValue
Included in content model of elements (1):
proposedMatch
Annotation
A type used to record the details of a difference between two sides of a business event.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="difference" type="TradeDifference"/>
