element <outstandingNotionalAmount> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
NonNegativeMoney
Content:
complex, 1 attribute, 2 elements
Defined:
locally witnin TradeNotionalChange.model group in fpml-business-events-5-5.xsd; see XML source

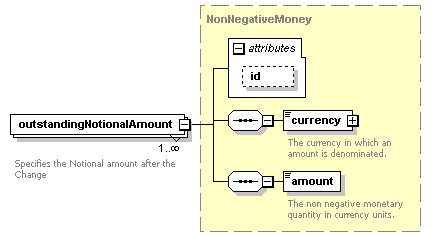

Content Model Diagram
XML Representation Summary
<outstandingNotionalAmount

id
 =
 xsd:ID
    >

Content:
 currency, amount
</outstandingNotionalAmount>
Content model elements (2):
amount (defined in NonNegativeMoney complexType), currency (defined in MoneyBase complexType)
Included in content model of elements (2):
increase, termination
Annotation
Specifies the Notional amount after the Change
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="outstandingNotionalAmount" type="NonNegativeMoney"/>
