element <SO2> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
CoalAttributePercentage
Content:
complex, 3 elements
Defined:
locally witnin CommodityCoalComposition.model group in fpml-com-5-5.xsd; see XML source

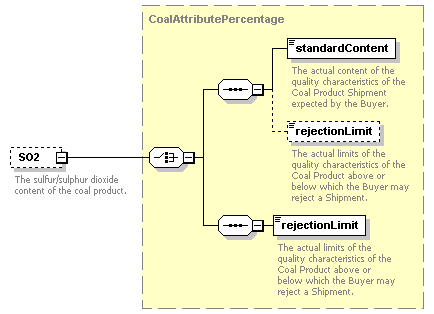

Content Model Diagram
XML Representation Summary
<SO2>

Content:
 (standardContent, rejectionLimit?) | rejectionLimit
</SO2>
Content model elements (3):
rejectionLimit (defined in CoalAttributePercentage complexType),
rejectionLimit (defined in CoalAttributePercentage complexType),
standardContent (defined in CoalAttributePercentage complexType)
Included in content model of elements (2):
standardQuality, StandardQualityStep
Annotation
The sulfur/sulphur dioxide content of the coal product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="SO2" type="CoalAttributePercentage"/>
