element <deliveryPeriodsScheduleReference> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
CalculationPeriodsScheduleReference
Content:
empty, 1 attribute
Defined:
locally witnin CommodityDeliveryPeriodsPointer.model group in fpml-com-5-5.xsd; see XML source

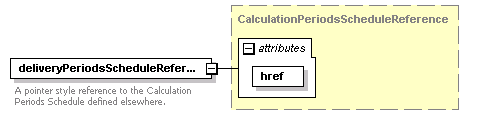

Content Model Diagram
XML Representation Summary
<deliveryPeriodsScheduleReference

href
 =
 xsd:IDREF
/>
Included in content model of elements (4):
physicalQuantitySchedule (defined in CommodityFixedPhysicalQuantity.model group),
physicalQuantitySchedule (in deliveryQuantity in electricityPhysicalLeg),
settlementPeriodsSchedule,
standardQualitySchedule
Annotation
A pointer style reference to the Calculation Periods Schedule defined elsewhere.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="deliveryPeriodsScheduleReference" type="CalculationPeriodsScheduleReference"/>
