element <totalPhysicalQuantity> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
UnitQuantity
Content:
complex, 1 attribute, 2 elements
Defined:
locally witnin CommodityFixedPhysicalQuantity.model group in fpml-com-5-5.xsd; see XML source

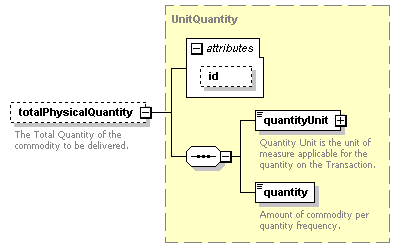

Content Model Diagram
XML Representation Summary
<totalPhysicalQuantity

id
 =
 xsd:ID
    >

Content:
 quantityUnit, quantity
</totalPhysicalQuantity>
Content model elements (2):
quantity (defined in UnitQuantity complexType), quantityUnit (defined in UnitQuantity complexType)
Included in content model of elements (5):
bullionPhysicalLeg, deliveryQuantity (in oilPhysicalLeg),
Annotation
The Total Quantity of the commodity to be delivered.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="totalPhysicalQuantity" type="UnitQuantity"/>
