element <supervisorRegistration> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
SupervisorRegistration
Content:
complex, 2 elements
Defined:
locally within ReportingRegimeIdentifier complexType in fpml-business-events-5-8.xsd; see XML source

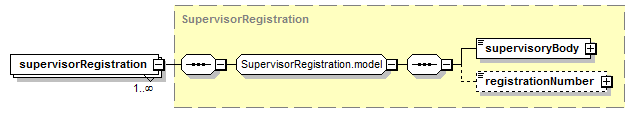

Content Model Diagram
XML Representation Summary
<supervisorRegistration>

Content:
supervisoryBody, registrationNumber?
</supervisorRegistration>
Content model elements (2):
registrationNumber,
supervisoryBody (defined in SupervisorRegistration.model group)
Included in content model of elements (2):
Annotation
Identifies the specific regulator or other supervisory body for which this data is produced. For example, CFTC, SEC, UKFSA, ODRF, SFC, ESMA.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="supervisorRegistration" type="SupervisorRegistration"/>
