element <lcFxRate> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxTerms
Content:
complex, 4 elements
Defined:
locally within LcAccrual complexType in fpml-loan-5-8.xsd; see XML source

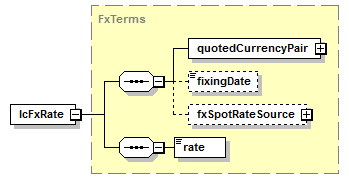

Content Model Diagram
XML Representation Summary
<lcFxRate>

Content:
quotedCurrencyPair, fixingDate?, fxSpotRateSource?, rate
</lcFxRate>
Content model elements (4):
fixingDate (defined in FxFixing complexType),
fxSpotRateSource (defined in FxFixing complexType),
quotedCurrencyPair (defined in FxFixing complexType),
rate (defined in FxTerms complexType)
Included in content model of elements (1):
lcAccrual
Annotation
Defines exchange rate between the letter of credit accrual and letter of credit currencies.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="lcFxRate" type="FxTerms"/>
