element <rateSourcePage> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
RateSourcePage
Content:
simple, 1 attribute
Defined:
locally within InformationSource complexType in fpml-shared-5-8.xsd; see XML source

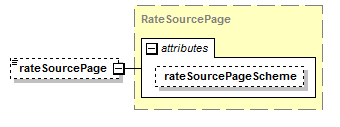

Content Model Diagram
XML Representation Summary
<rateSourcePage

rateSourcePageScheme
 =
xsd:anyURI

>

Content:
{ xsd:normalizedString }
</rateSourcePage>
Simple Content Detail:
MaxLength:
255
MinLength:
0
Included in content model of elements (17):
fixingInformationSource (in fxTargetKnockoutForward),
informationSource (defined in FxAccrualBarrier complexType),
informationSource (defined in FxBarrierFeature complexType),
informationSource (defined in FxRateObservable complexType),
informationSource (defined in QuotationCharacteristics.model group),
informationSource (in crossRate defined in FxRateObservable complexType),
informationSource (in settlementRateSource defined in YieldCurveMethod complexType),
informationSource (in touch),
informationSource (in trigger in fxAccrualDigitalOption),
informationSource (in trigger in fxDigitalOption),
nonstandardSettlementRate,
primaryRateSource (defined in CommodityFx complexType),
primaryRateSource (defined in FxSpotRateSource complexType),
primaryRateSource (in asian in features in fxOption),
secondaryRateSource (defined in CommodityFx complexType),
secondaryRateSource (defined in FxSpotRateSource complexType),
secondaryRateSource (in asian in features in fxOption)
Annotation
A specific page for the rate source for obtaining a market rate.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="rateSourcePage" type="RateSourcePage"/>
